1. Introduction
React to events in real time to deliver responsive and personalized experiences for applications and customer experience. Built on open source Apache Kafka, IBM Event Streams is an event-streaming platform that helps you build smart applications that can react to events as they happen.
This lab we will configure and deploy an API Integration Flow developed with ACE Toolkit that uses the Kafka Nodes to connect to an Event Streams cluster to produce events using the latest version of the ACE.
We will also configure and deploy an Integration Flow developed with ACE Toolkit that uses the Kafka Node to connect to an Event Streams cluster to consume those events and put them onto an MQ queue as wells as write to log file.
If you need to review logging in to the Platform Navigator review the steps in the Return to main lab page
2. Setup Consumer Endpoints, Kafka Topic and MQ Queue
1. First we will login to your assigned cluster from your VDI that you were assigned. We will create the kafka topic and MQ Queue we will be using.
Once logged into your VDI you will see a icon for Firefox on the desktop, double click on that to open the browser.
1. You will now be on your home page and in the upper left it will show your login name and you can always click on IBM Automation to get to this home page.
- For this lab we will be using App Connect Dashboard, under Integration Messaging we will use MQ, and under Event Streaming we will use es-demo for our Kafka broker.

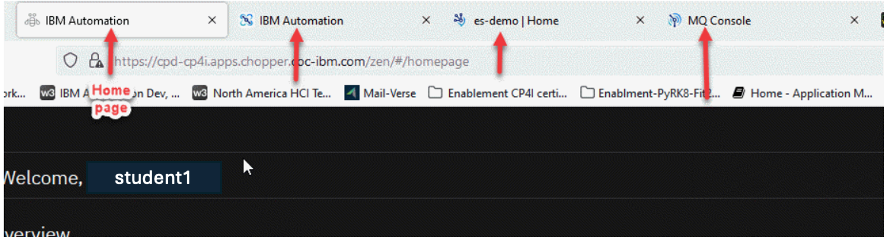

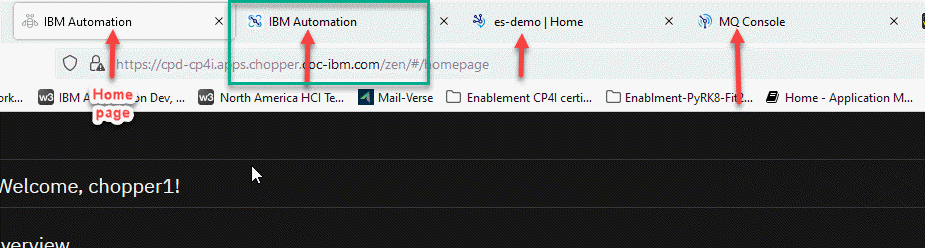

2. You can right click on each of these capabilities and open them in a new tab.
You will then have a tab open for each of them to help save time.
2.1 Create the Kafka topic
Now fill in the fields. We will use the SCRAM credentials we saved earlier in the Kafka Pre-Req.
Note: If you didn’t complete the pre-lab steps Return to Kafka Pre-lab page
Once you complete this or if you have already completed you will have the following details saved in a notepad and the certs should be in your download directory.
a. The bootstrap URL of the cluster
b. The SCRAM username
c. The SCRAM password
d. The PEM certificate (used in the Designer flows).
e. The PKCS12 password (used in the Toolkit flows).
f. The PKCS12 certificate (used in the Toolkit flows).

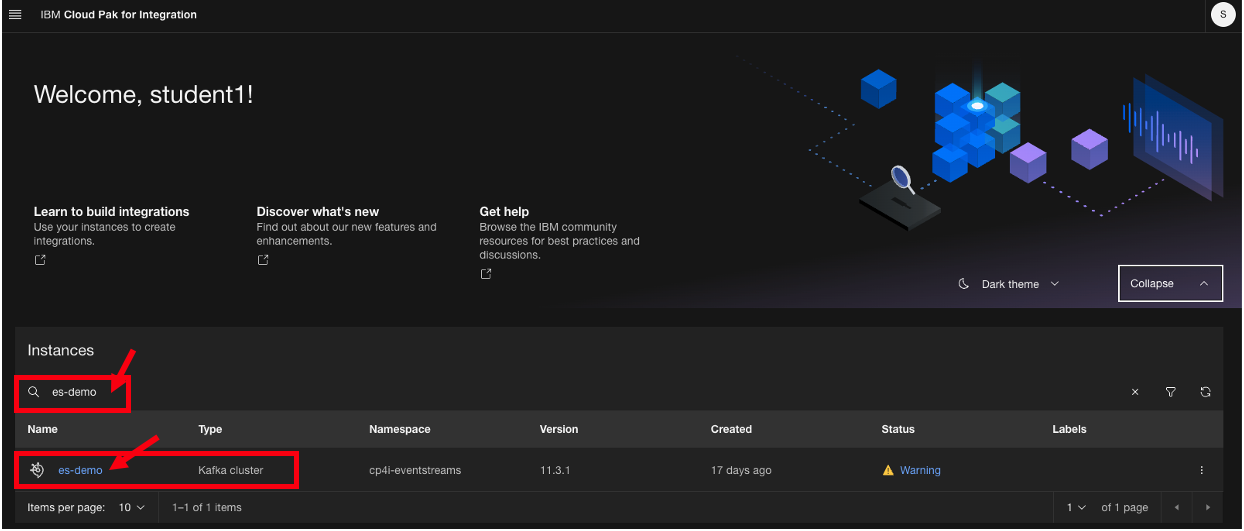

1. Now go to the tab for es-demo or you can click on the link from the home page and this will take you to the IBM Event Streams home page.

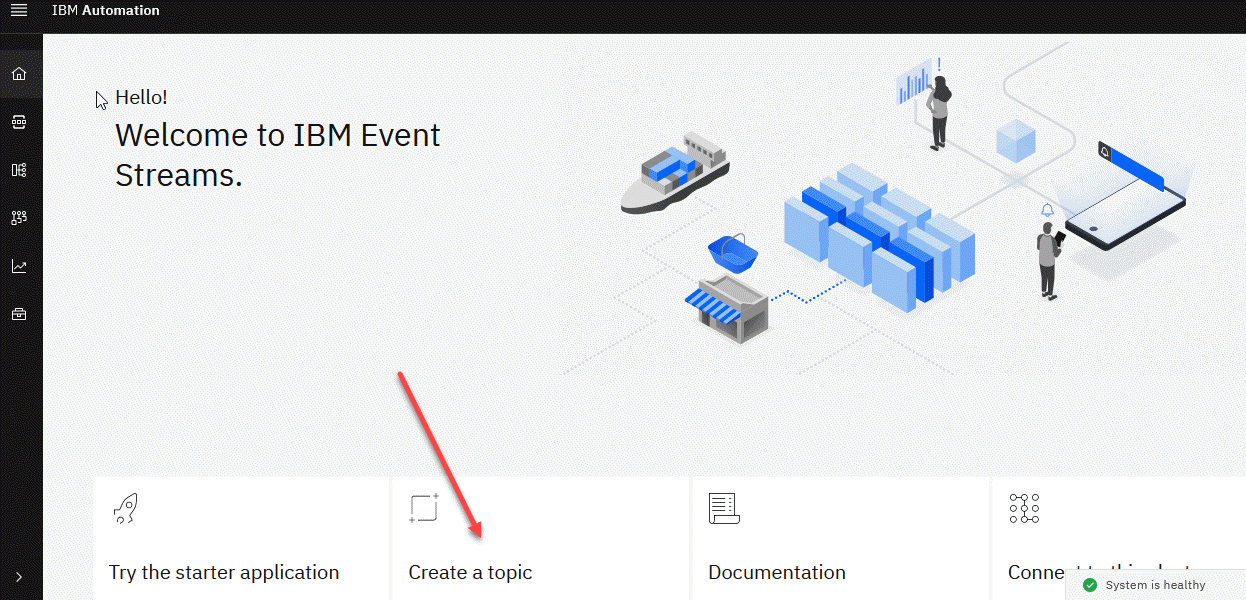

2. Now we will create our topic. Click on the Create a topic tile.

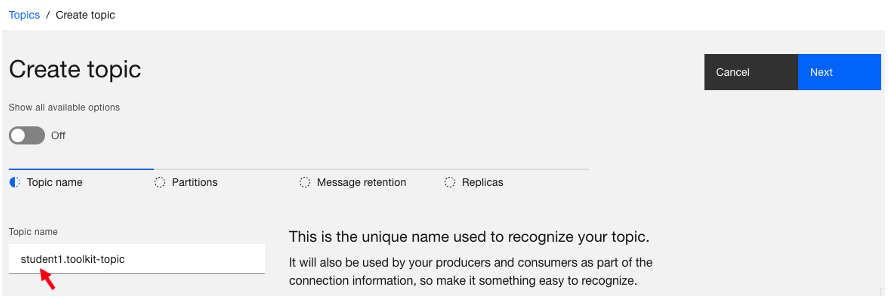

3. Now enter the name of your topic. Since this is a shared Kafka broker, use your userid as part of the topic name. In this example, we are logged in as student1 so the topic name is student1.toolkit-topic. Click Next.
Note: Make sure you use your userid without adding additional characters since this is tied to the connection details in the Pre-lab section.
4. Leave the partitions at 1 and click Next.

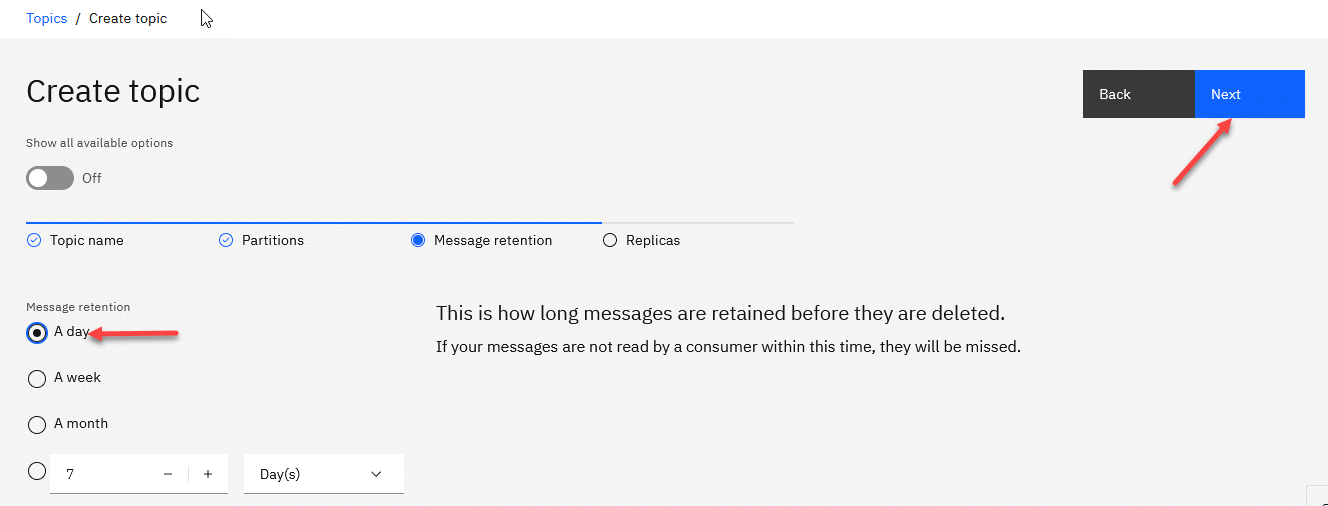

5. Since this is for a lab, change the Message retention to A day and click Next. Note: If we wanted to retain message longer we could change this to meet those needs.

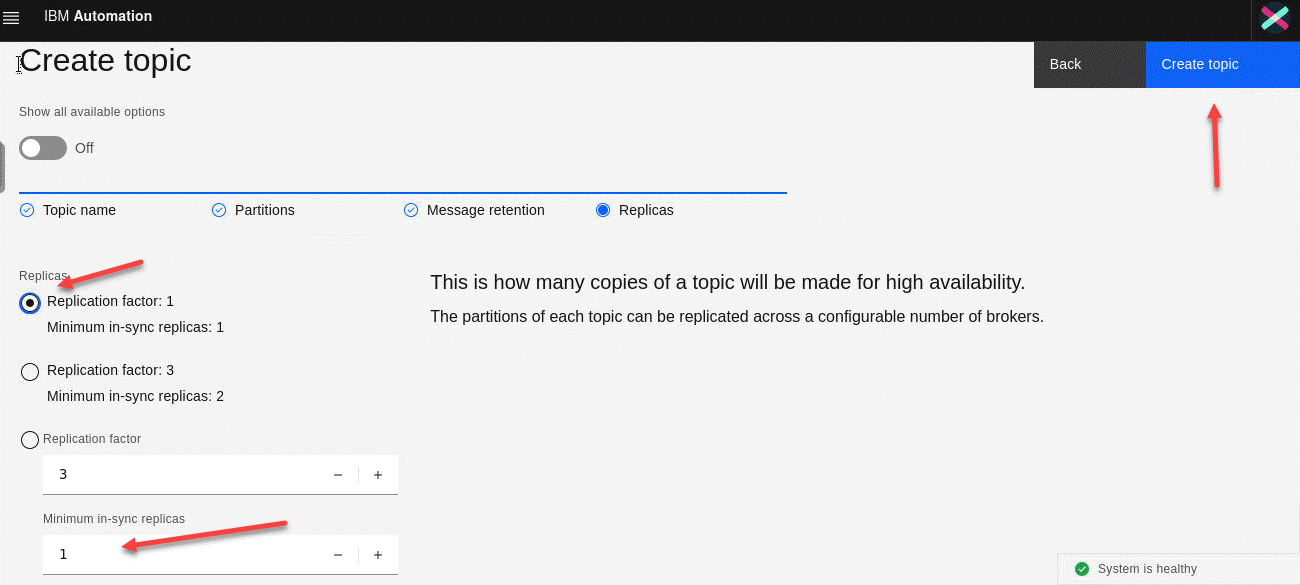

6. For the Replicas, we will change the Minimum in-sync replicas to 1 and select Replication factor:1. Note: Make sure that the radial button next to Replication factor:1 is selected before clicking Create topic.

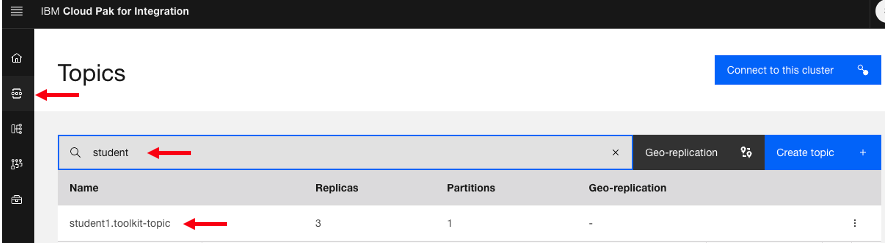

7. Now you will be back on the Topics screen. You may see other users topics in the list but make sure you see your topic. In this example, we just created the ex: student1.toolkit-topic topic.
On the left menu click on the home page.
8. We are now back on the Event Steams home page. We need to make we have the PKCS12 cert downloaded to our VDI since this is where we need to have this to setup our configuration.
If you already download the PKCS12 cert for the Event streams then skip to step 11.

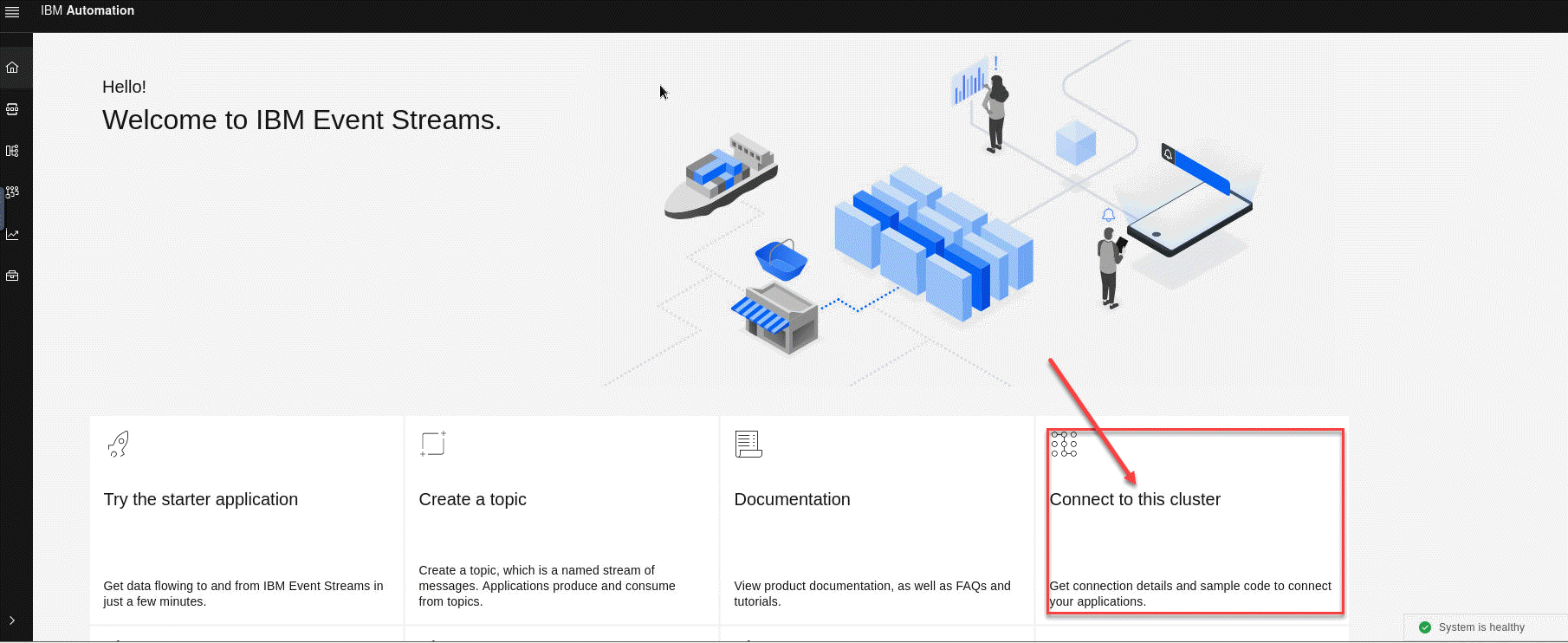

Otherwise click on the Connect to the cluster tile.

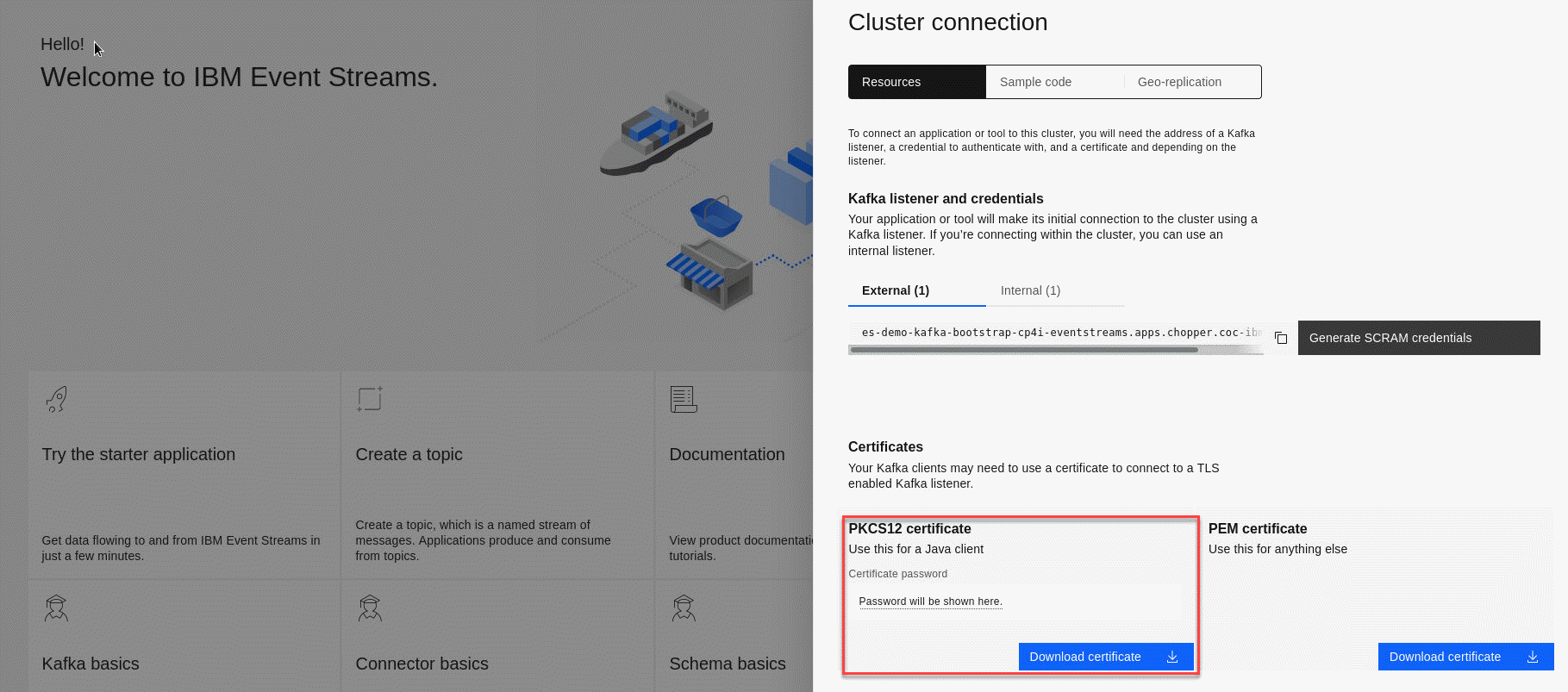

9. Now we will click on the PKCS12 Download certificate.

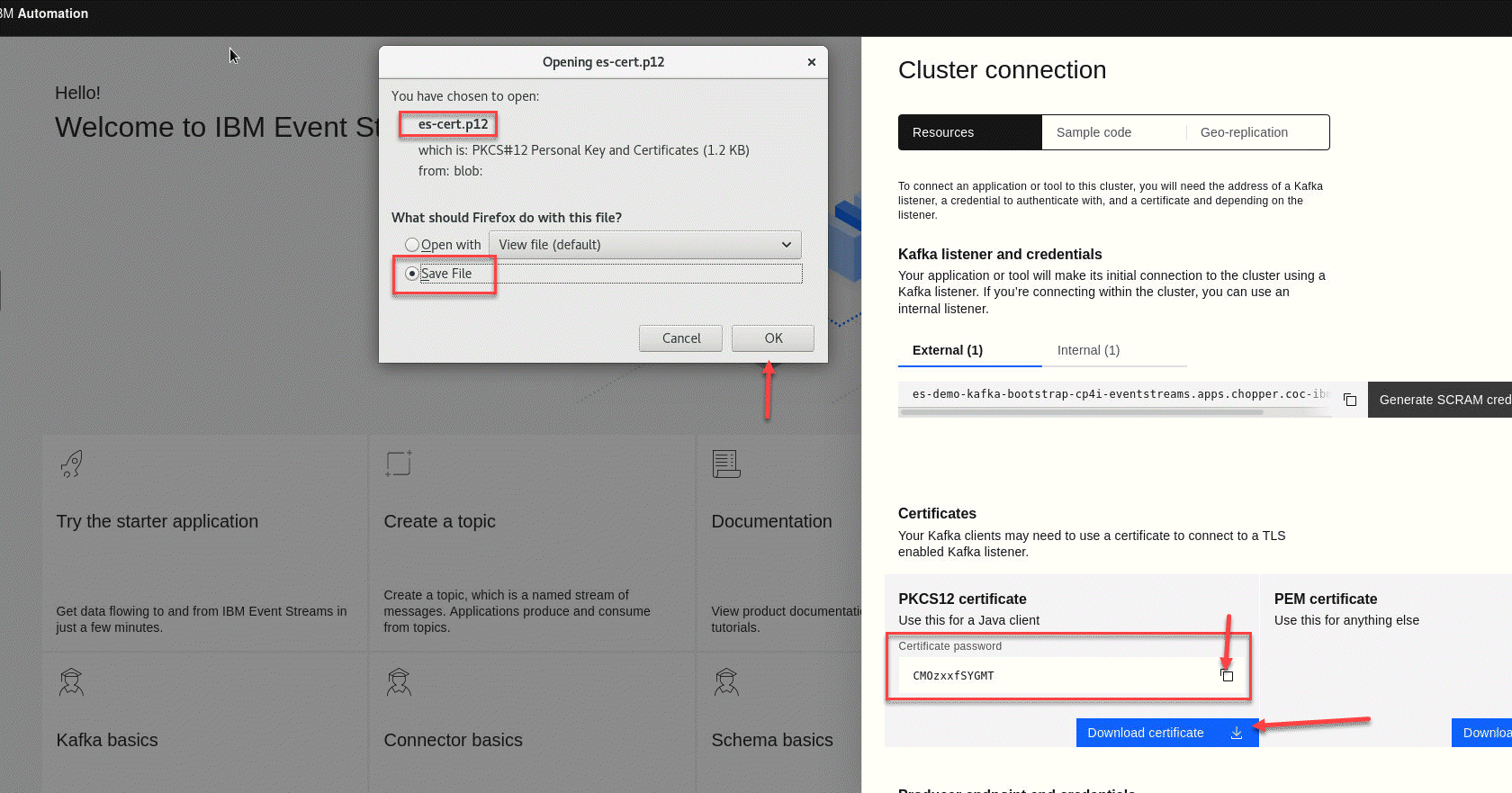

10. We will sve the es-cert.p12 file and also we need to save the password.
11. Due to the version of Java in ACE we will need to convert the PKCS12 to a JKS.
We will do this by running the following command.
/usr/bin/keytool -importkeystore -srckeystore es-cert.p12 -srcstoretype PKCS12 -destkeystore es-cert.jks -deststoretype JKS -srcstorepass XXXXXXX -deststorepass XXXXXX -noprompt

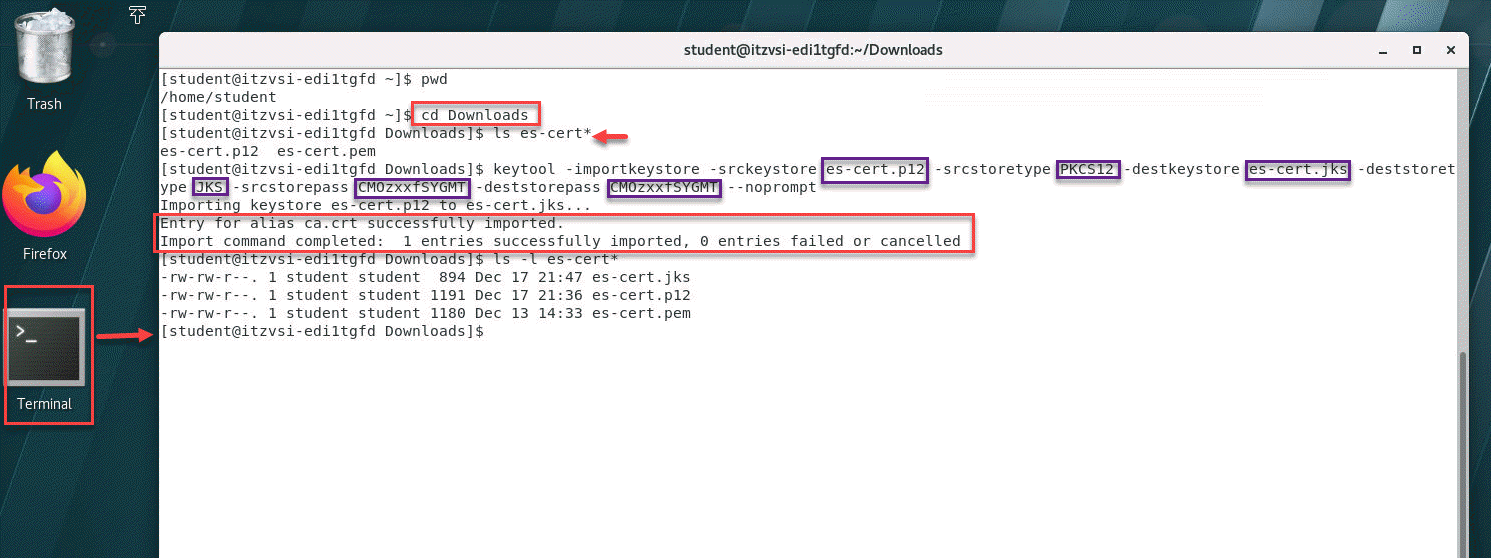

We will first open a terminal window. Next cd to the Downloads directory. If you do a ls es-cert* command you should see the es-demo.p12 cert you just download. The only thing you need to change in this example is replace the XXXXXX with the password you saved for the PKCS12 cert. Once done do a list again and you will now see the es-cert.jks file.
2.2 Create MQ Queue for the consumer
1.Now go to the tab for MQ Console
Or you can click on the link from the home page and this will take you to the IBM MQ Console home page.

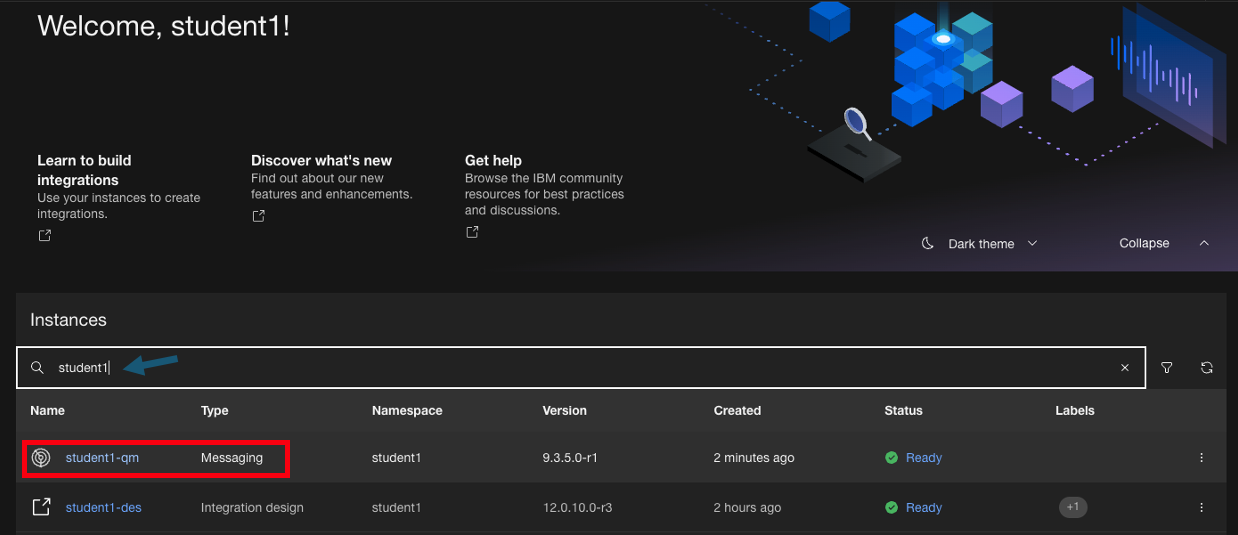

2. Now click on your Queue Manger tile.

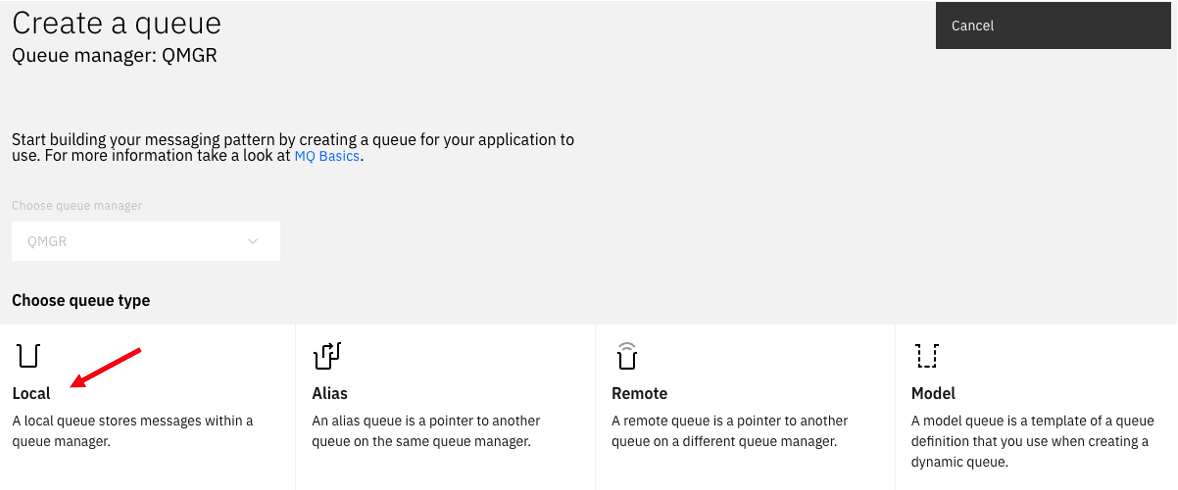

3. We will be creating a new local Queue for this lab. Click on Create
4. Click on the local Queue tile.

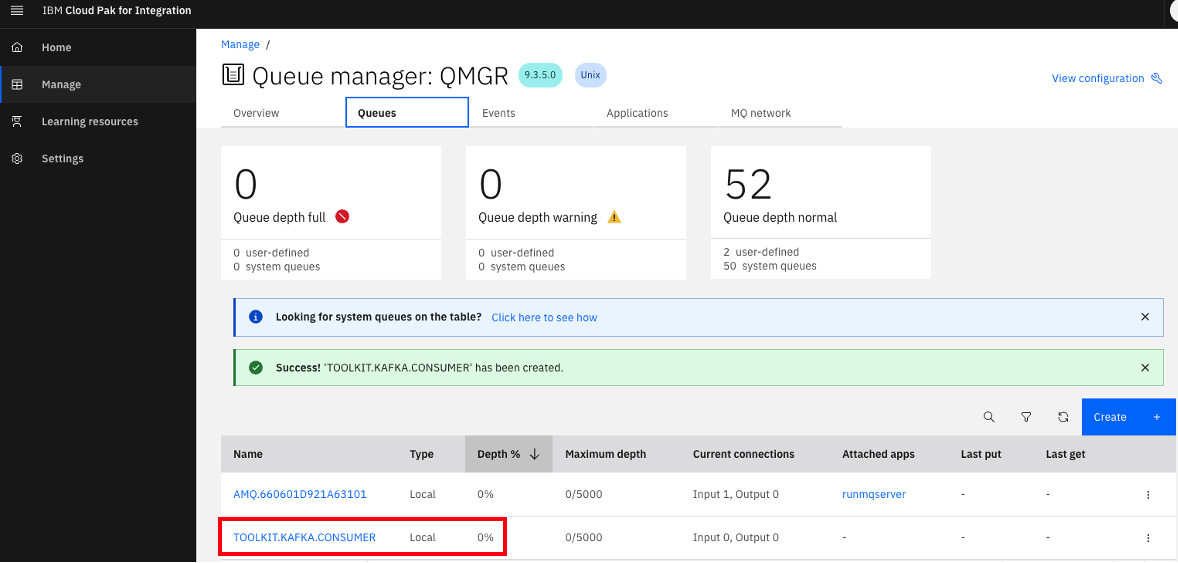

5. Now enter the Queue name. In the example we used TOOLKIT.KAFKA.CONSUMER then click Create.
6. We now have your Queue defined. Click on the IBM Automation on the upper left to go back to the homepage.
3. Create Kafka assets in toolkit
In this lab we will use a simple project that exposes an API to POST information into a Kafka topic. In addition we will create a consumer project that will subscribe to our topic and consume the messages that our test API POST to the Kafka topic.
3.1 Create Kafka API test Producer in toolkit
In this section, we will use App Connect Toolkit to create a simple API that will produce messages and publish to our topic. We have a Project Interchange File provided that you will configure to use your user info for accessing the shared Kafka Broker in our lab cluster.
- Now download the KafkaProducerAPI-Template-PI.zip Click here and save the zip file to your VDI.

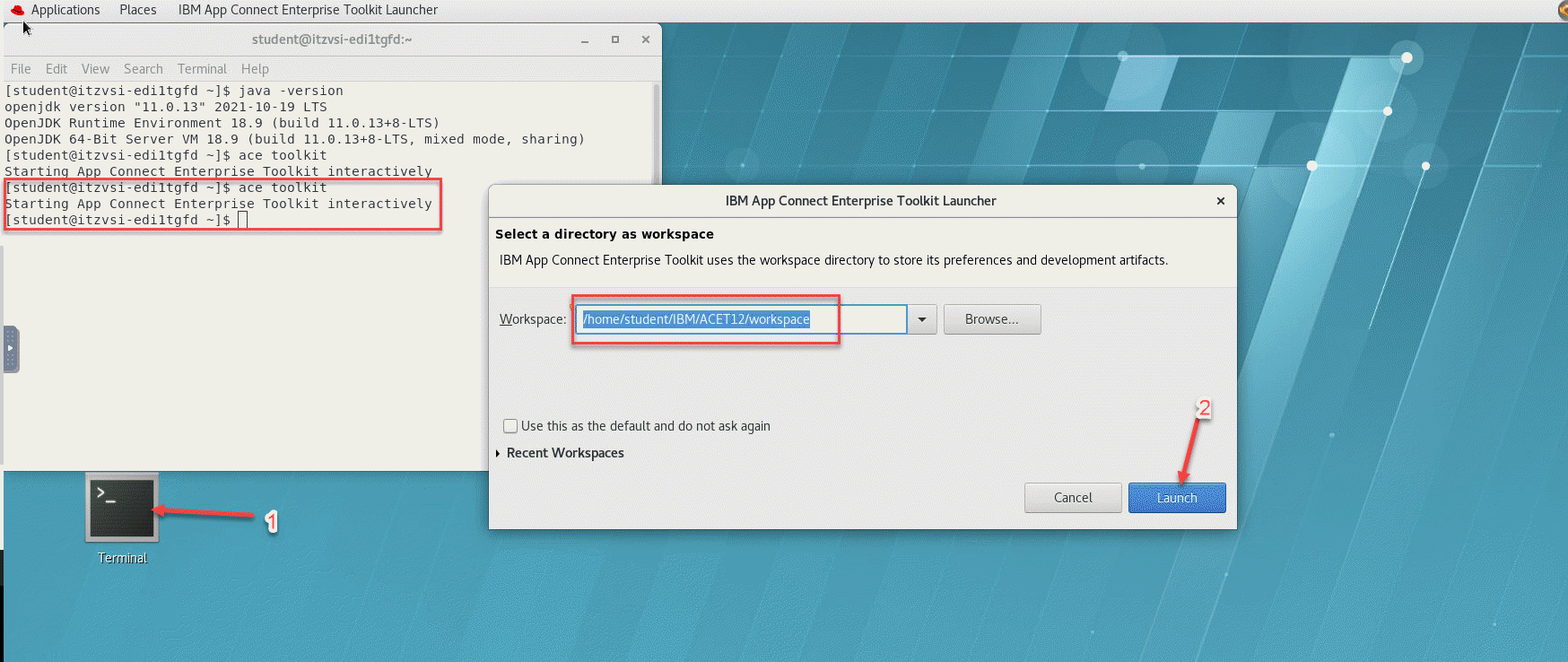

1. First we will start the ACE toolkit in our VDI. Double click on the Terminal icon on the desktop to open a terminal window. This will land you in the home directory.
Enter the following command to launch the ACE toolkit kit ace toolkit.
You will be presented with a window to select your workspace. Enter the workspace name /home/student/IBM/ACET12/workspace and click launch.

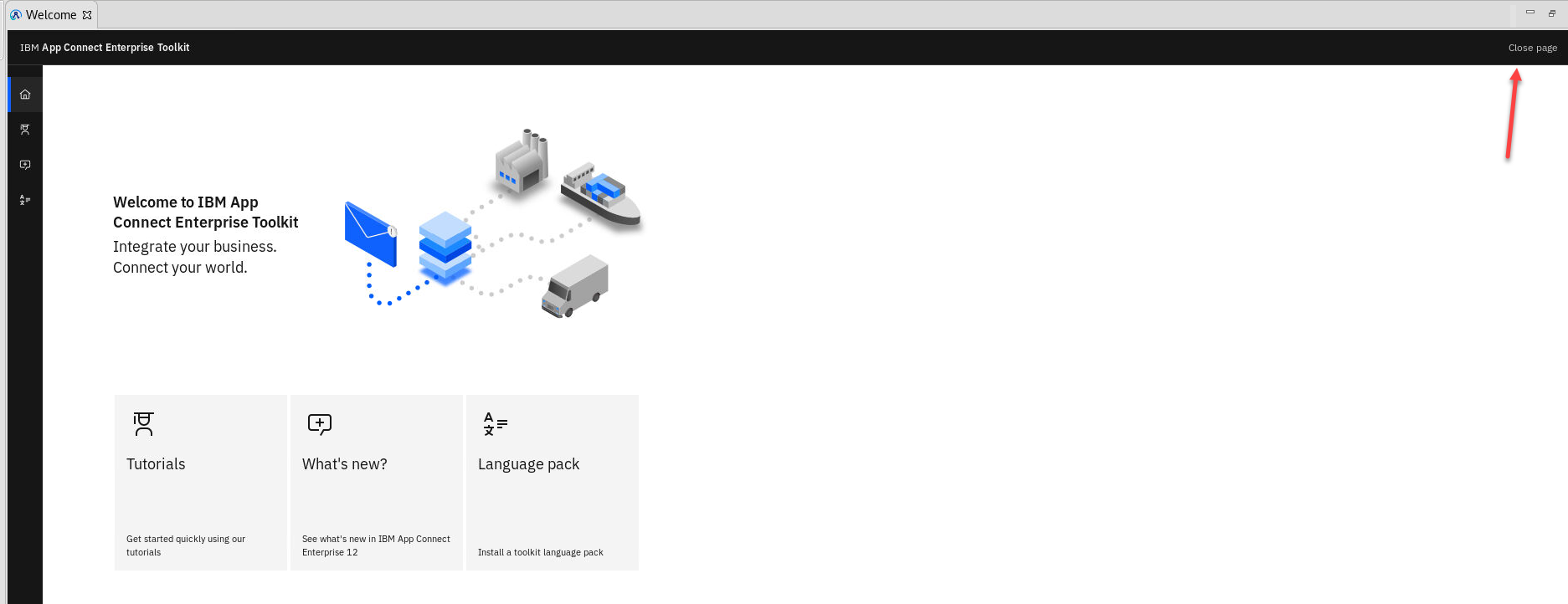

2. If this is the first time using this workspace you will see the following screen and can just click to close the page.
3. The Eclipse based Integration Toolkit will open:
A) The Application Development window (A) is where your Applications, REST APIs, etc. will be shown in your workspace
B) Window (B) is where resources that you open (for example message flows) will be shown.
C) Window (C) is where properties of resources that you highlight in window (B) can be viewed
D) The Integration Explorer Window (D) is where you can view and manage deployed assets (for example Applications and Message flows). Note assets are deployed to Integration Servers that are optionally managed by an Integration Node. When they are managed by an integration node the integration servers will appear “under” an integration node in this view. When not managed by an integration node they will be found under the “Integration Servers” view in this window.

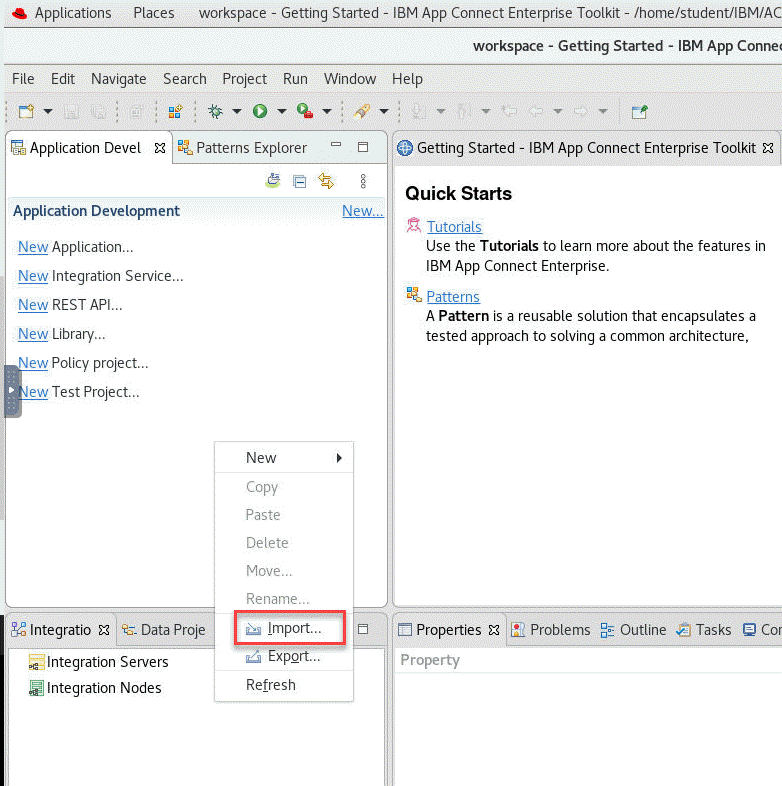

4. Now we will import this Project Interchange file into our Toolkit. Right click in the Application Development pane and select Import

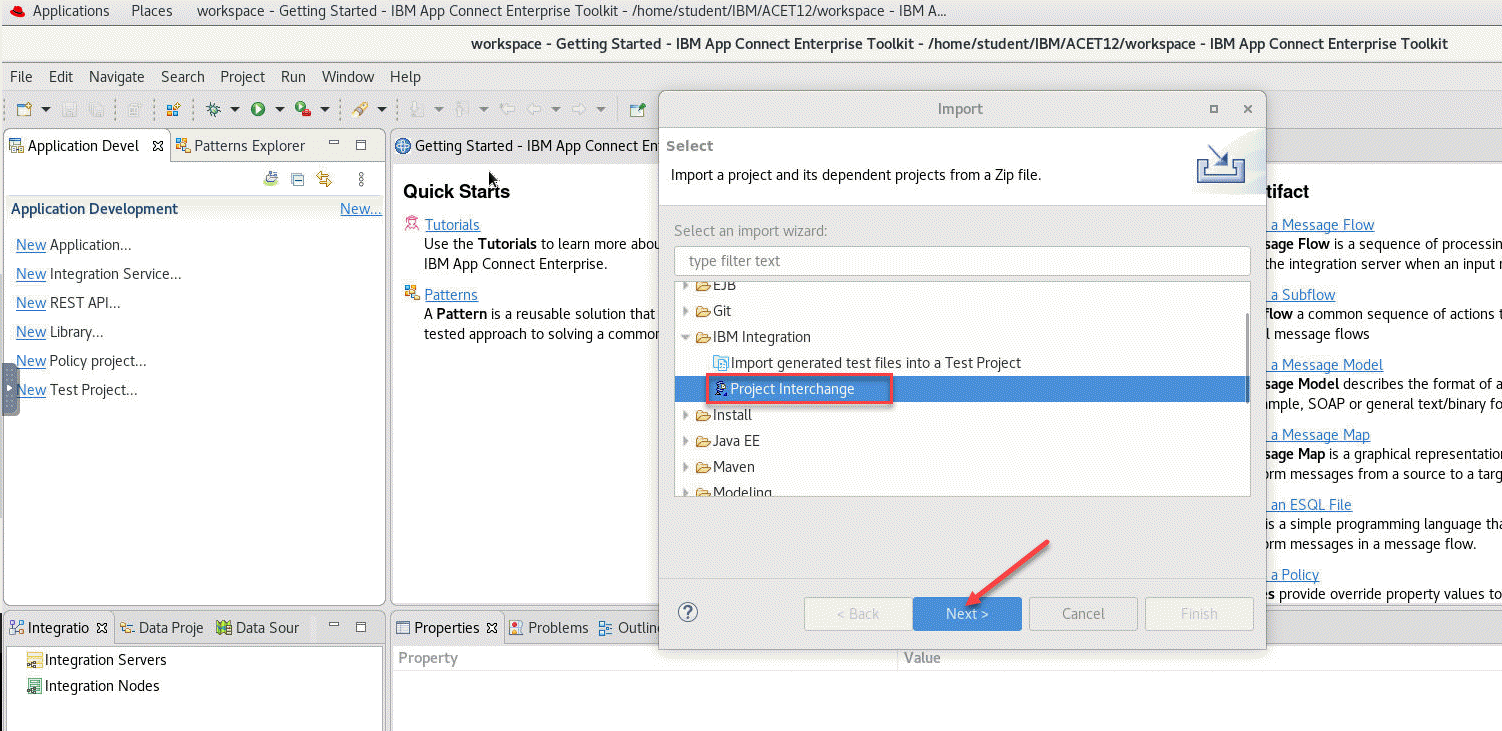

5. The Import window will show and select the Project Interchange and click Next

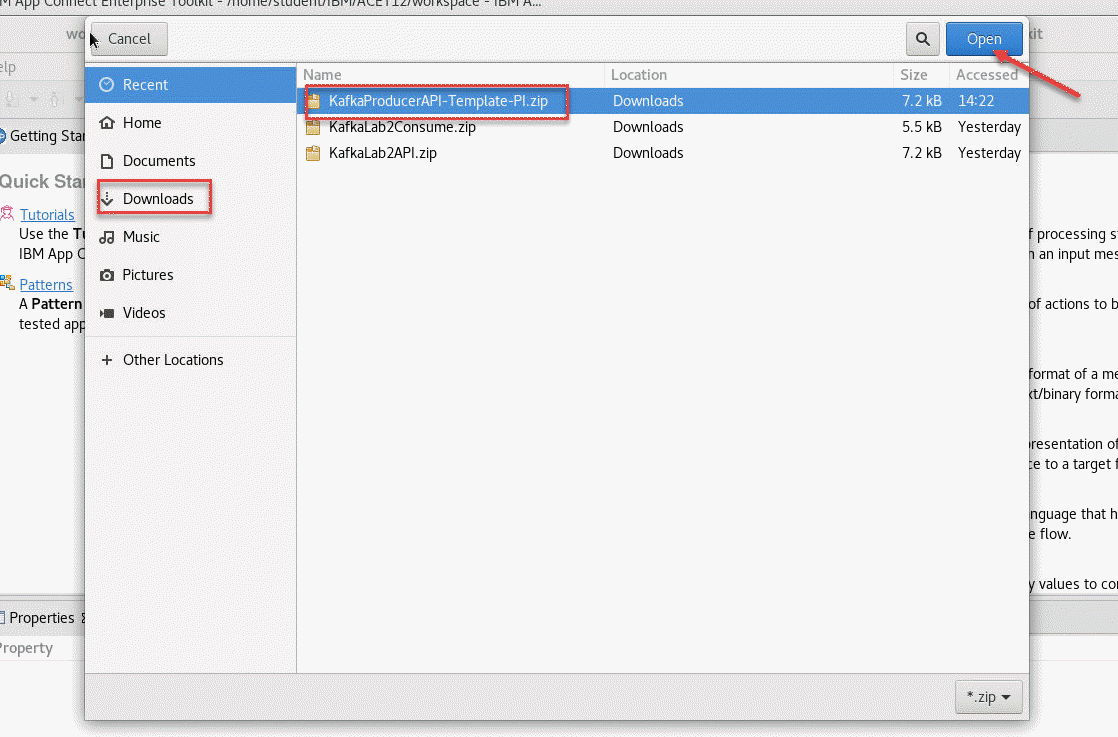

6. When you downloaded the Project Interchange file it put in the Download directory. Click on the Download in the left menu and you will see your PI file. Select the API Template and click Open

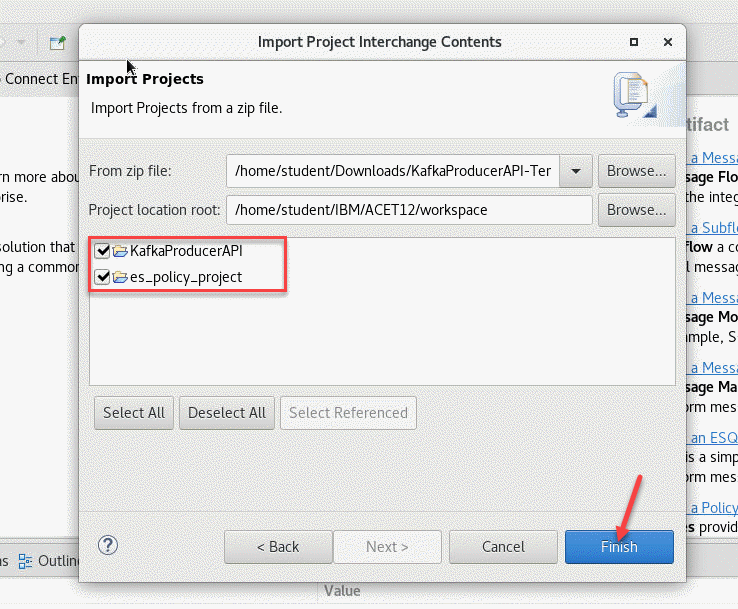

7. You will now see the Content of this PI file. Make sure both the API and es-policy are checked and click Finished
8. You will now see the project in the Application Development on the left sdie. Open it can go to the Subflows folder and double click on the postContacts.subflow and you will see the flow open.

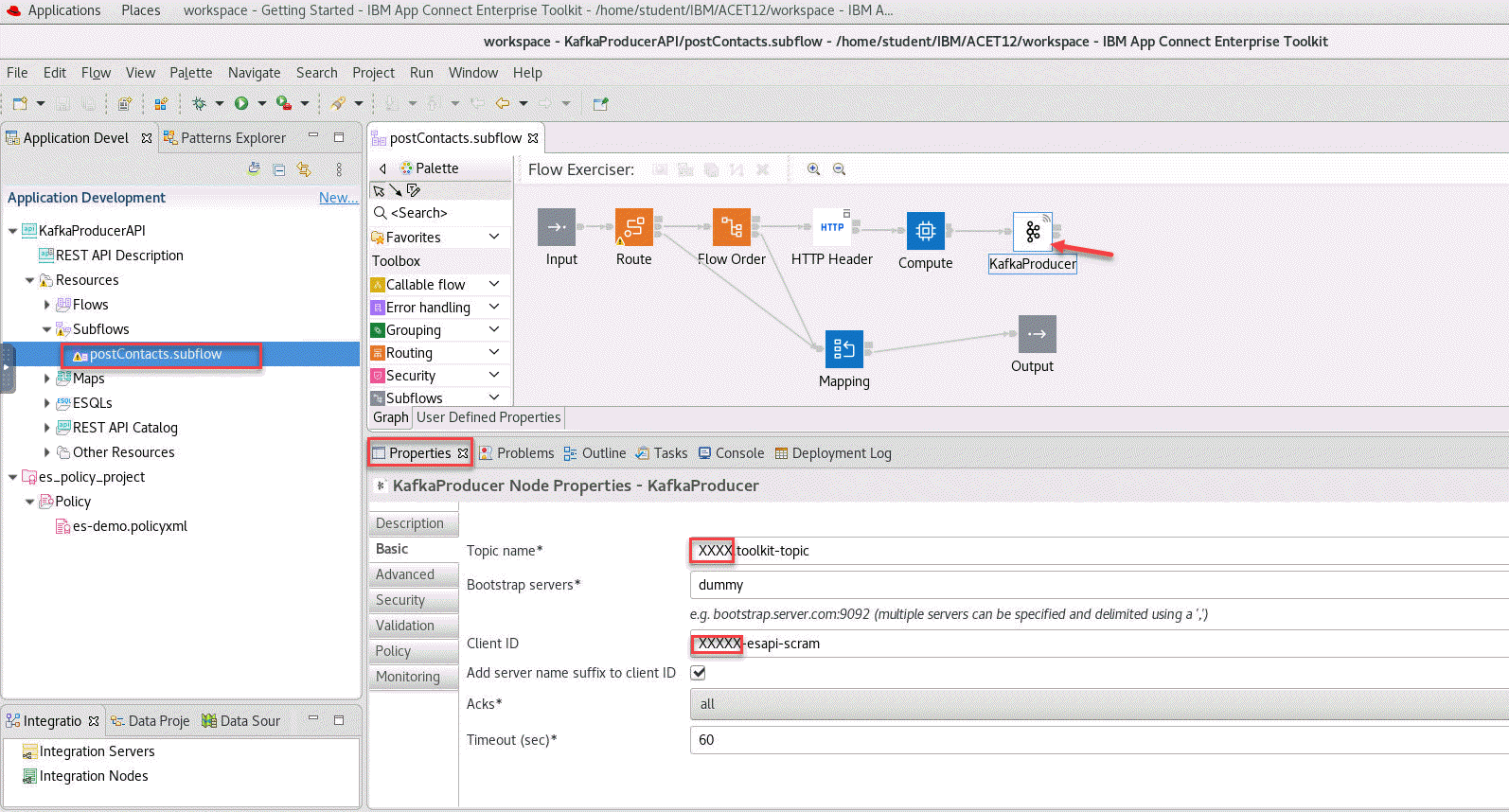

Click on the KafkaProducer in the flow make sure you click on the Properties tab. This is where you will make your updates to this flow. For the Topic name you will replace the XXXX with your user id. In this example it would be student1.
Do the same for the Client ID.
Note Enter CTL-S to save your updates.

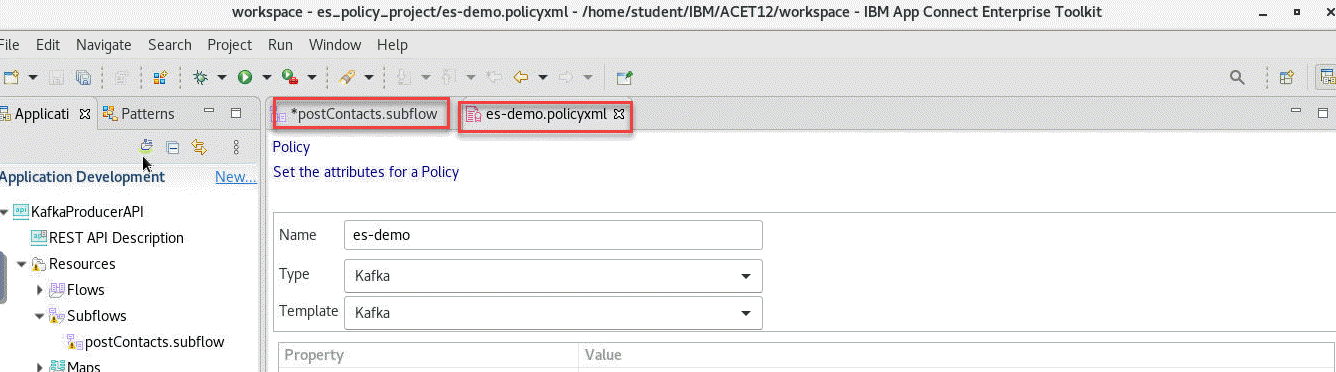

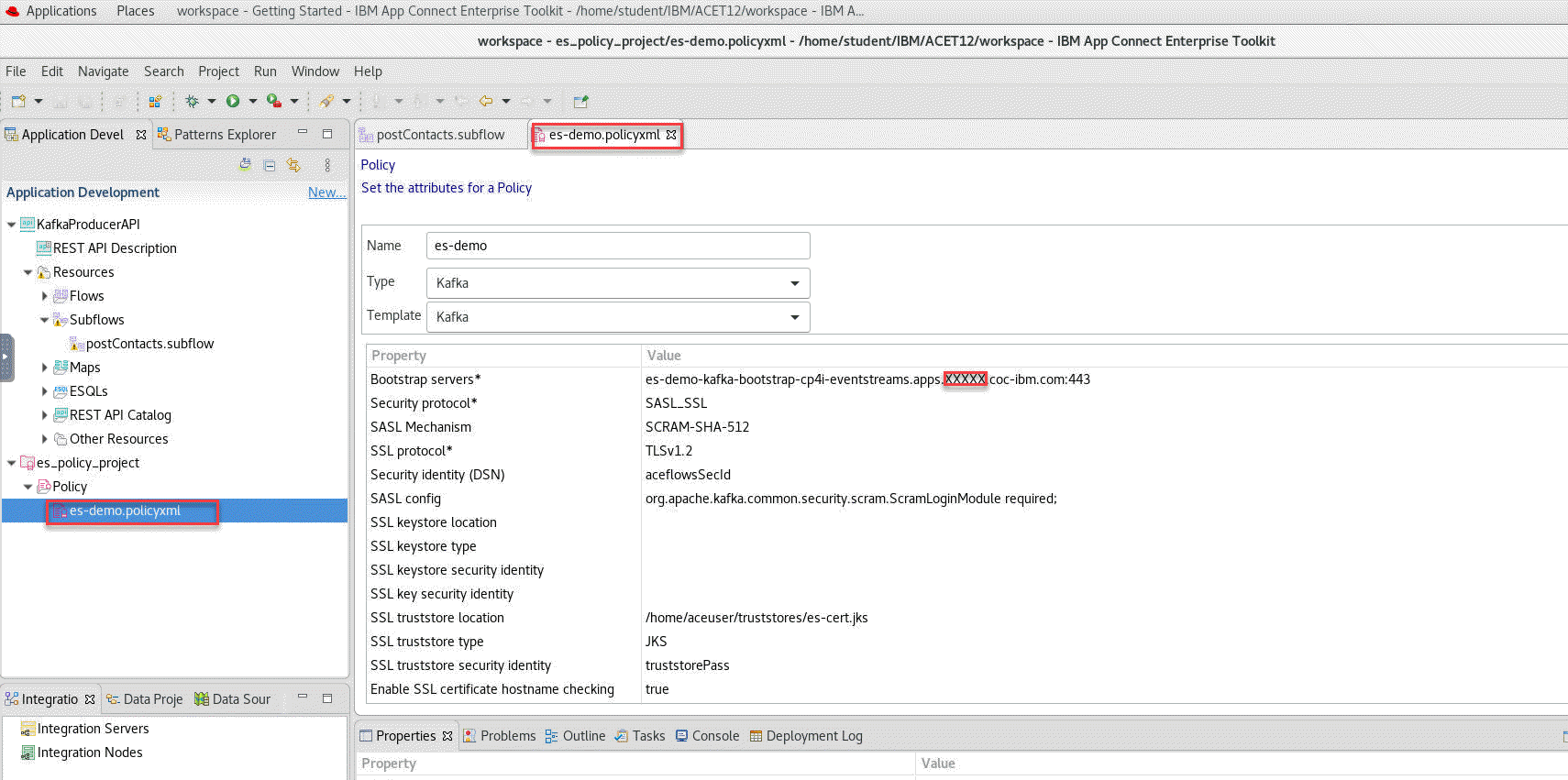

9. Now we will open the Event Stream Policy where we will configure the connection info to the Kafka broker. Copy and paste the Event Streams Kafka Cluster bootstrap URL you captured in the pre-req lab.
10. Make sure to save your updates. If you click on the postContacts.subflow you will see there is an ’*‘ that means it isn’t saved. You can do a CTL-S to save. Do the same for the es policy.
3.2 Create Bar file to deploy our Producer flow

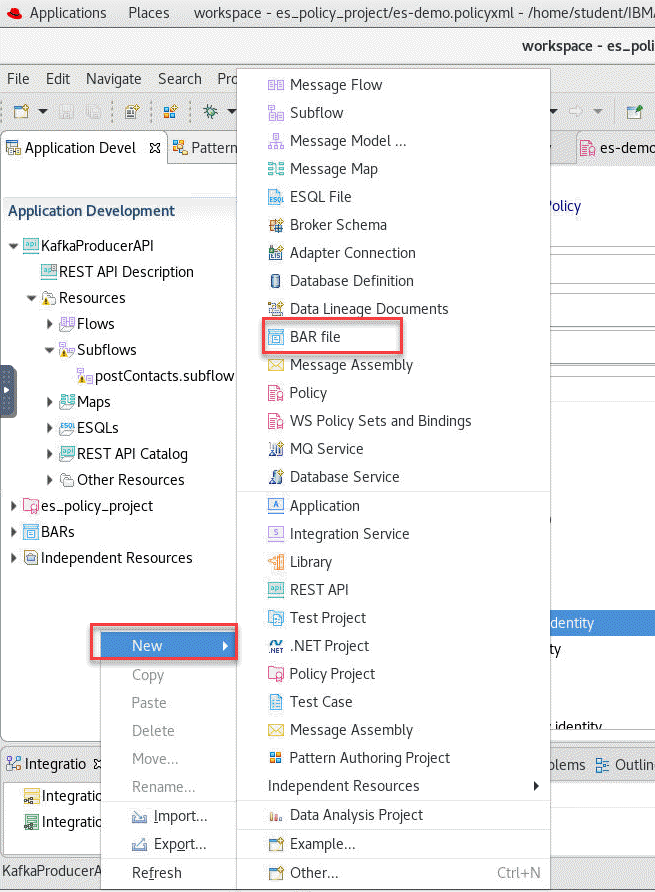

1. Now we will create the BAR file to deploy our flow. Navigate to the *File menu and select *New and then BAR file
2. In the pop-up window enter the name of the BAR file, i.e. kafka-api-producer and click Finish.

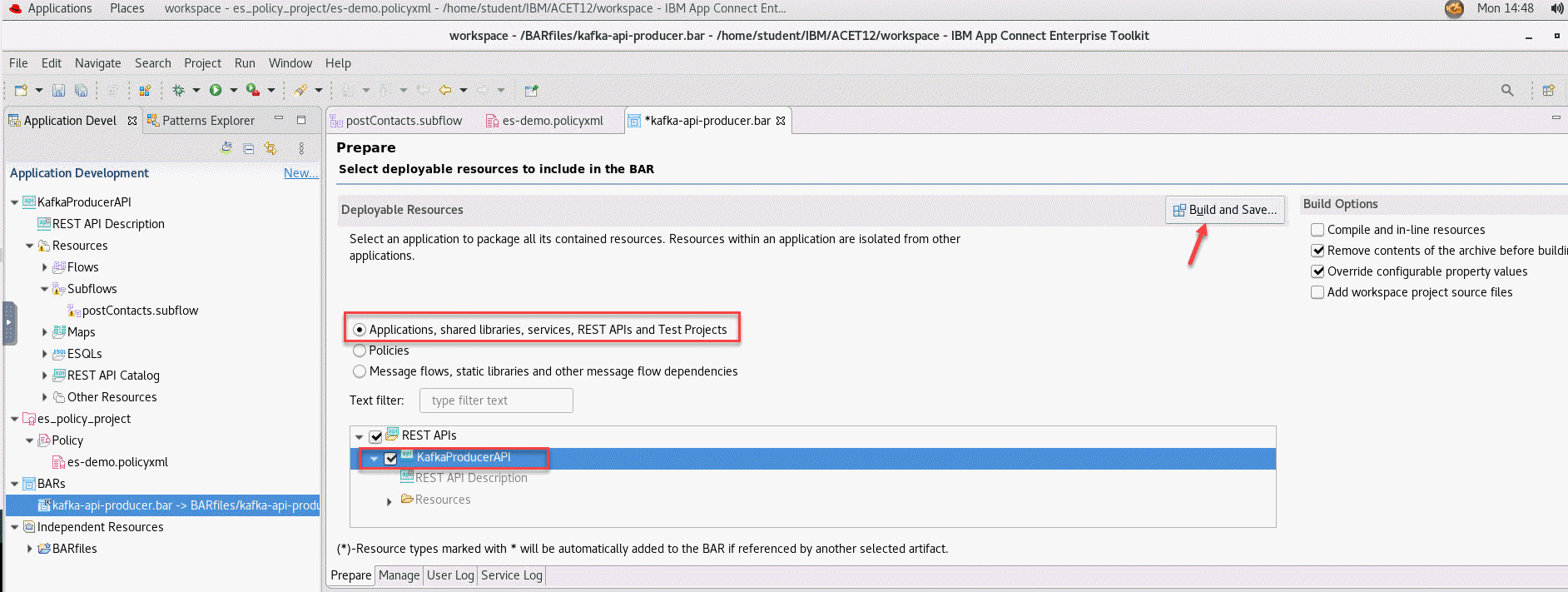

3. The BAR Editor is open. Select Applications, shared libraries, services, REST APIs, and Test Projects to display the right type of resources and then select your application, in this case KafkaProducerAPI. Finally click Build and Save… to create the BAR file.

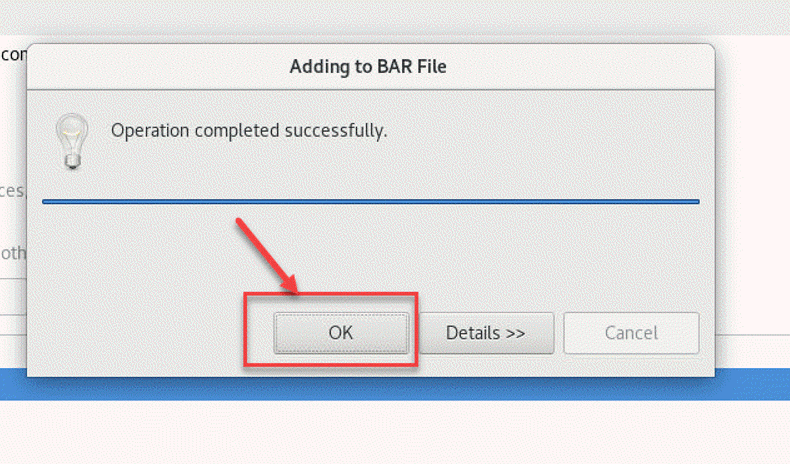

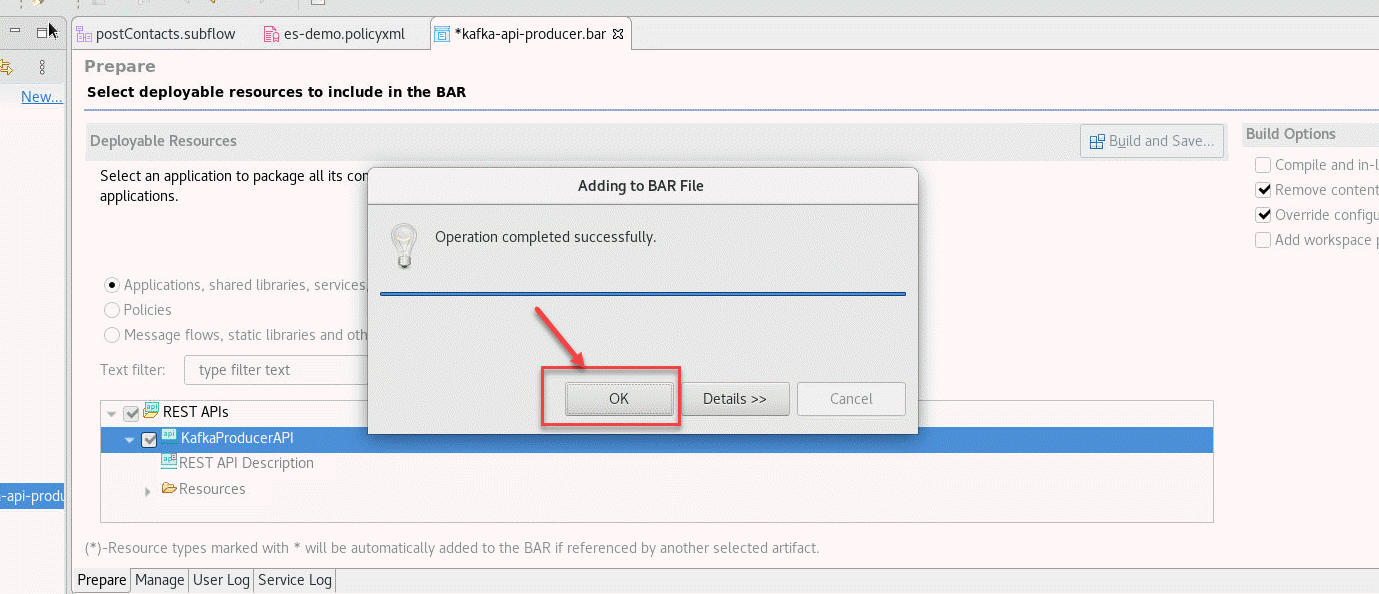

4. You can dismiss the notification window reporting the result clicking OK.
5. We need to do a final step. We need to create a zip file from the Policy Project we created earlier in this section. First we will open the Files tools

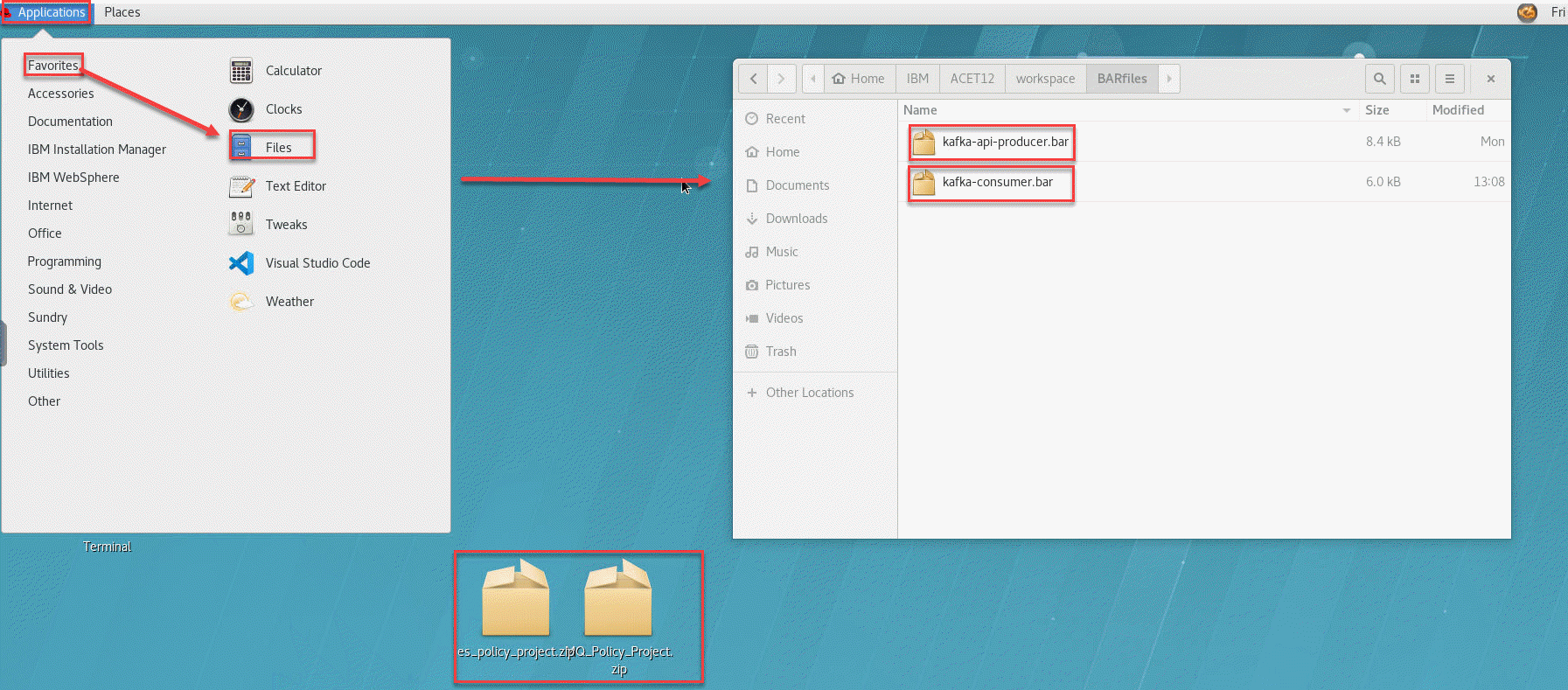

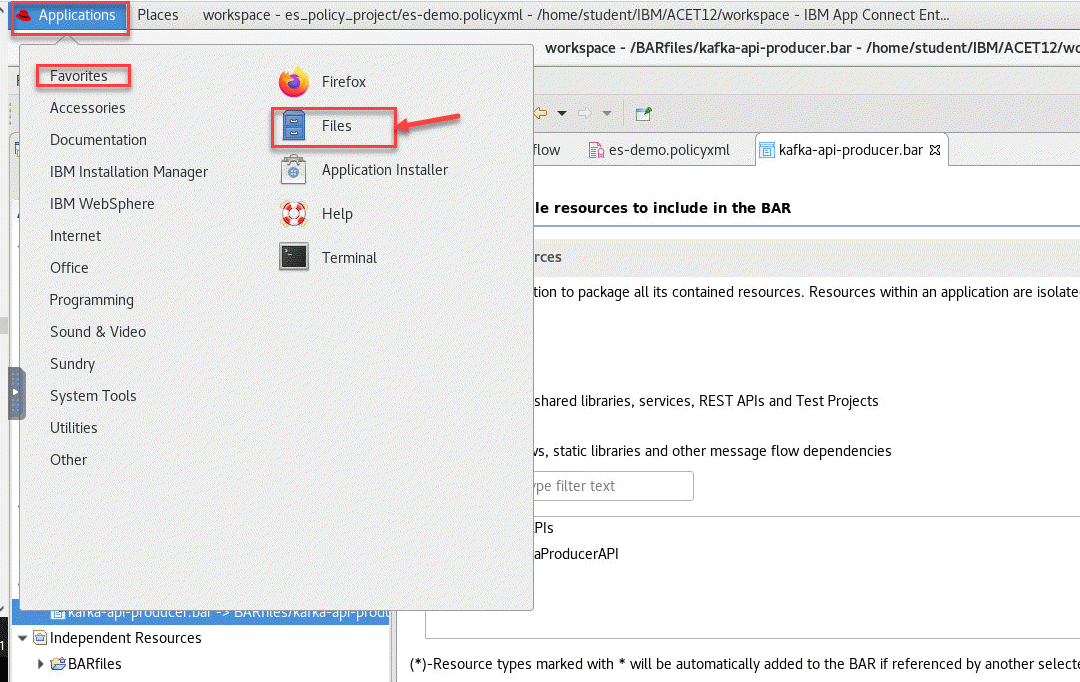

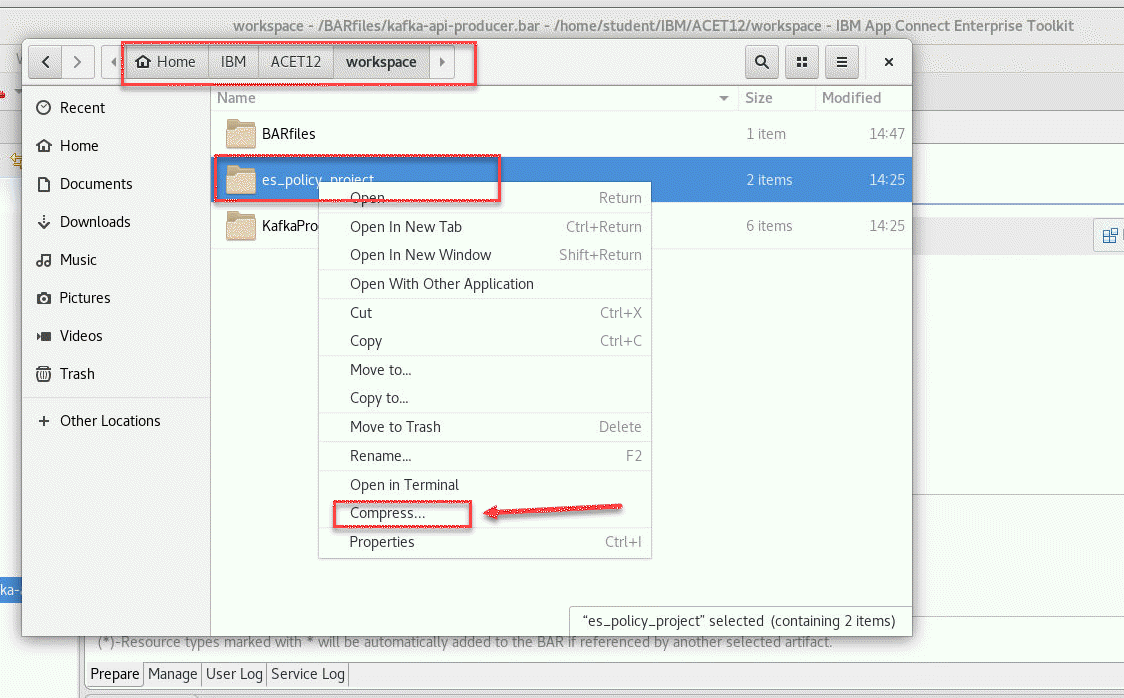

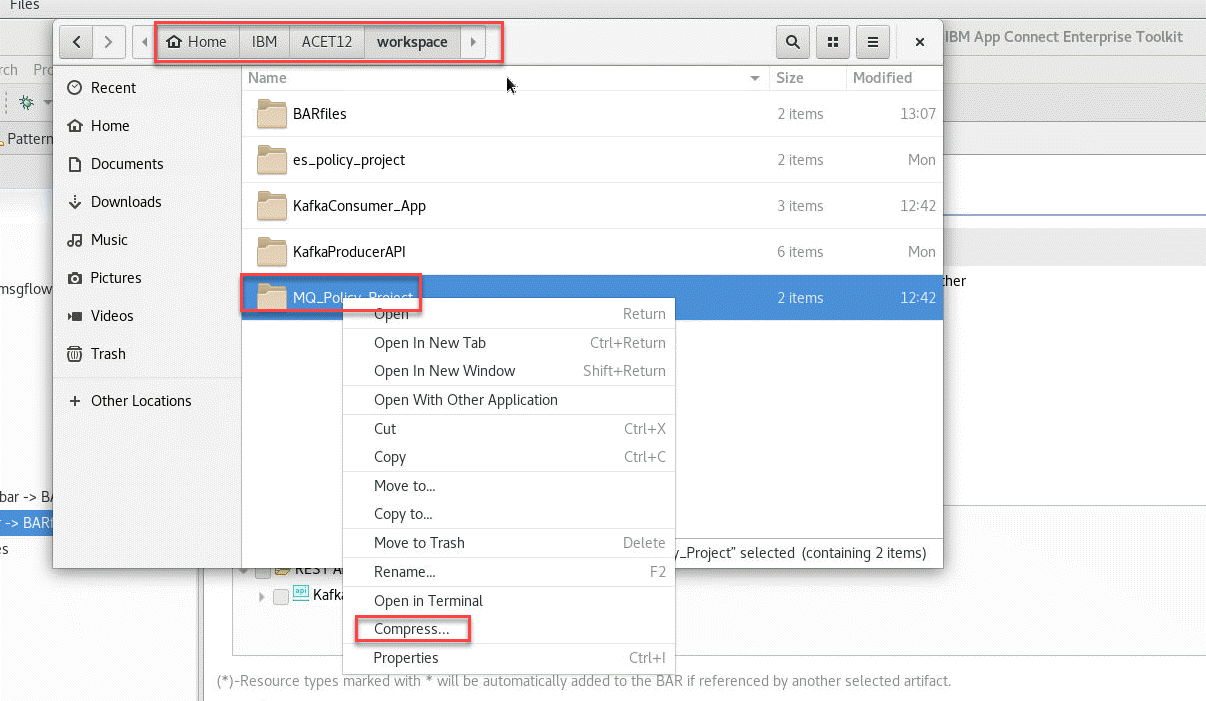

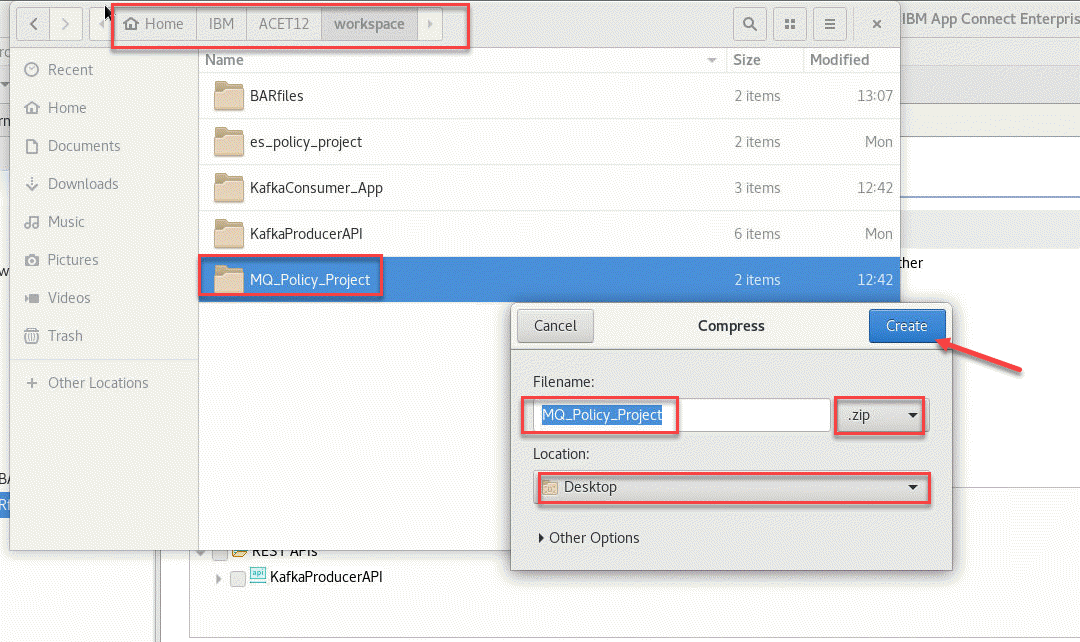

6. Now goto the directory were we saved the Policy. This should be under the ACE Toolkit workspace. You will see the es_policy_project right click on it and select Compress

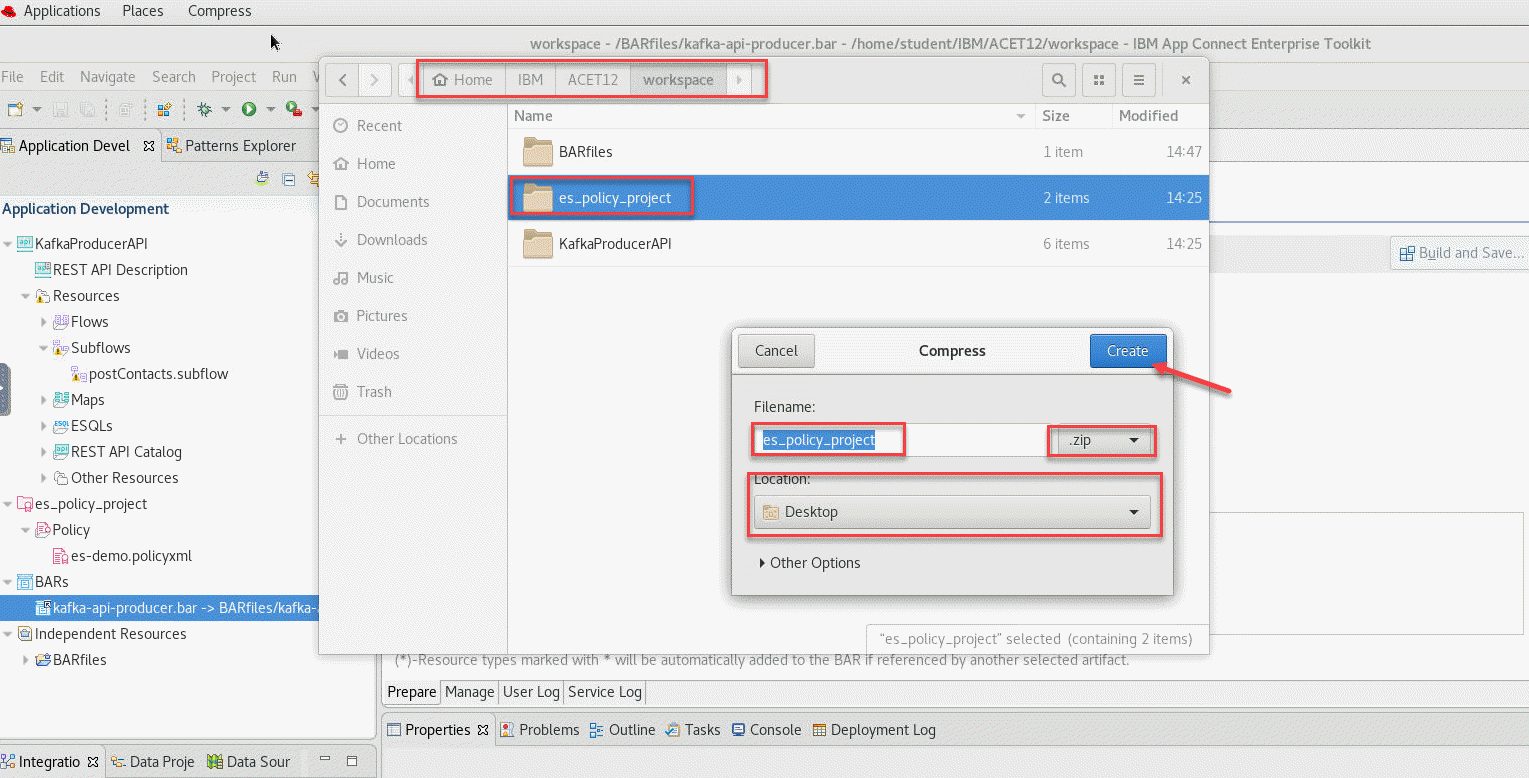

7. In the Compress Window make sure to select .zip for the format and the Location will be Desktop. Click Create
3.3 Create Kafka Consumer in toolkit
In this section, we will use App Connect Toolkit to create a consumer flow that will consumer the messages produced by our API producer from our topic. We have a Project Interchange File provided that you will configure to use your user info for accessing the shared Kafka Broker in our lab cluster.
- Now download the KafkaConsumerTemplatePI.zip Click here and save the zip file to your VDI.

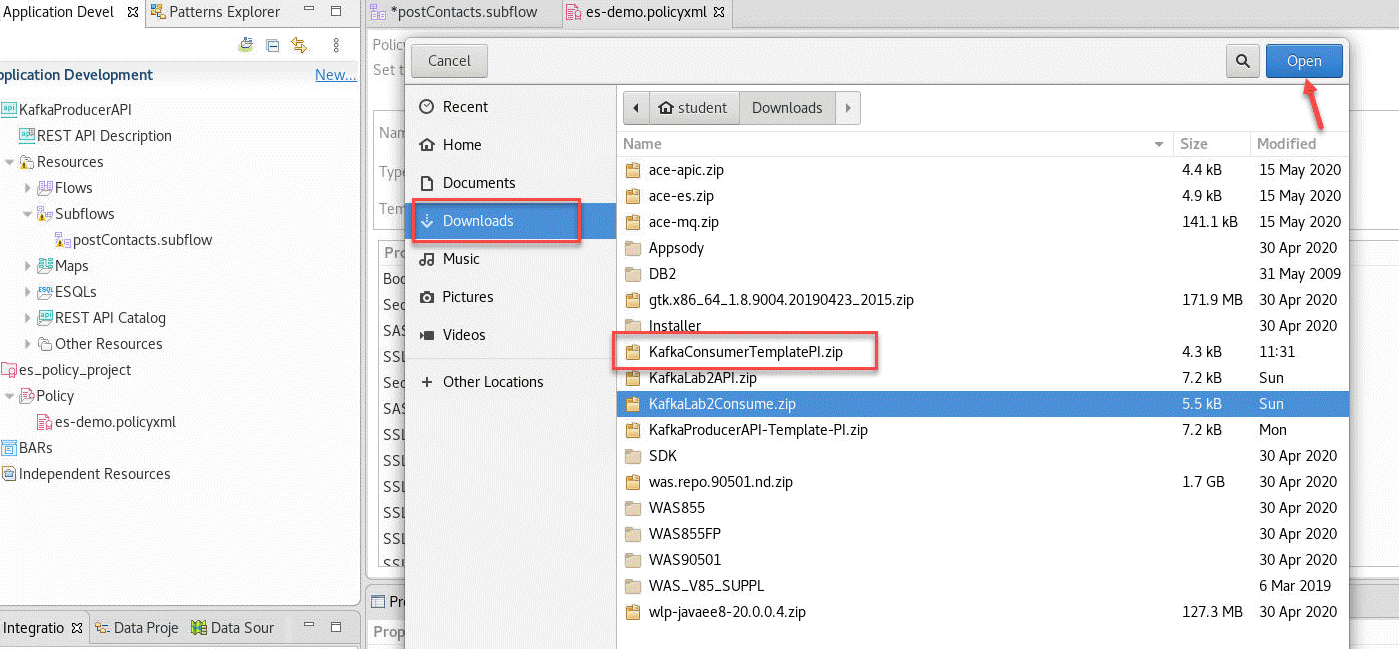

1. Now we will import this Project Interchange file into our Toolkit. Right click in the Application Development pane and select Import
2. The Import window will show and select the Project Interchange and click Next
3. When you downloaded the Project Interchange file it put in the Download directory. Click on the Download in the left menu and you will see your PI file. Select the Consumer Template and click Open

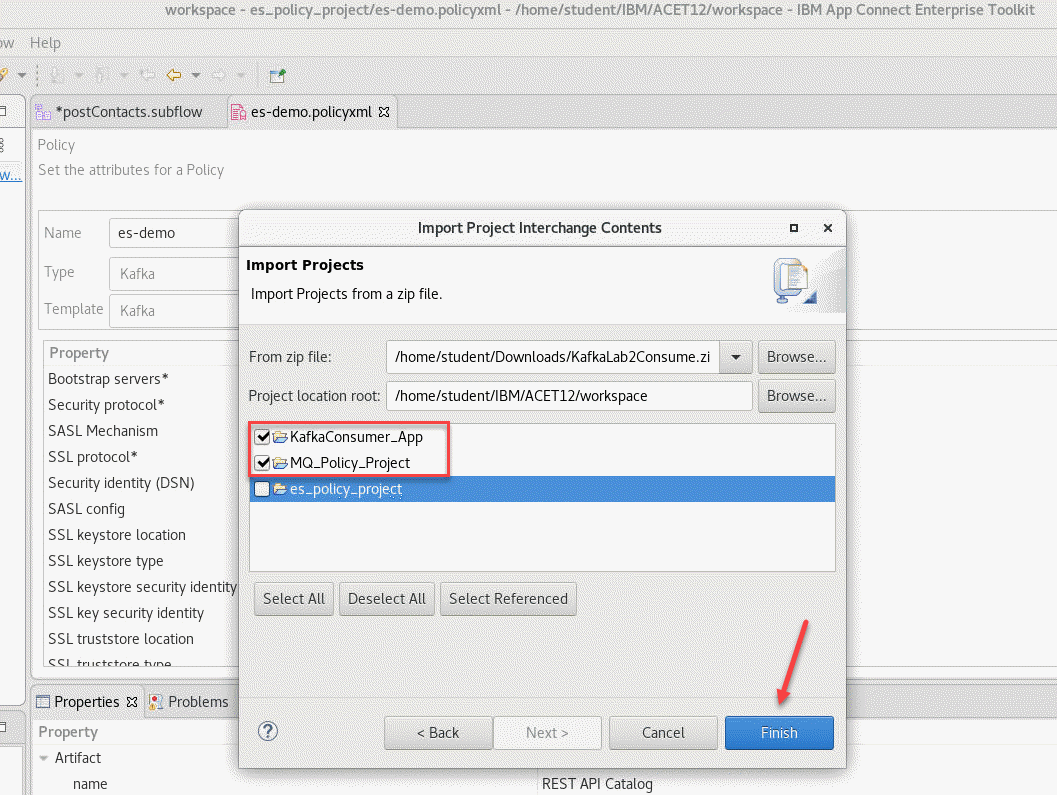

4. You will now see the Content of this PI file. Make sure both the API and es-policy are checked and click Finished
8. You will now see the project in the Application Development on the left sdie.
-

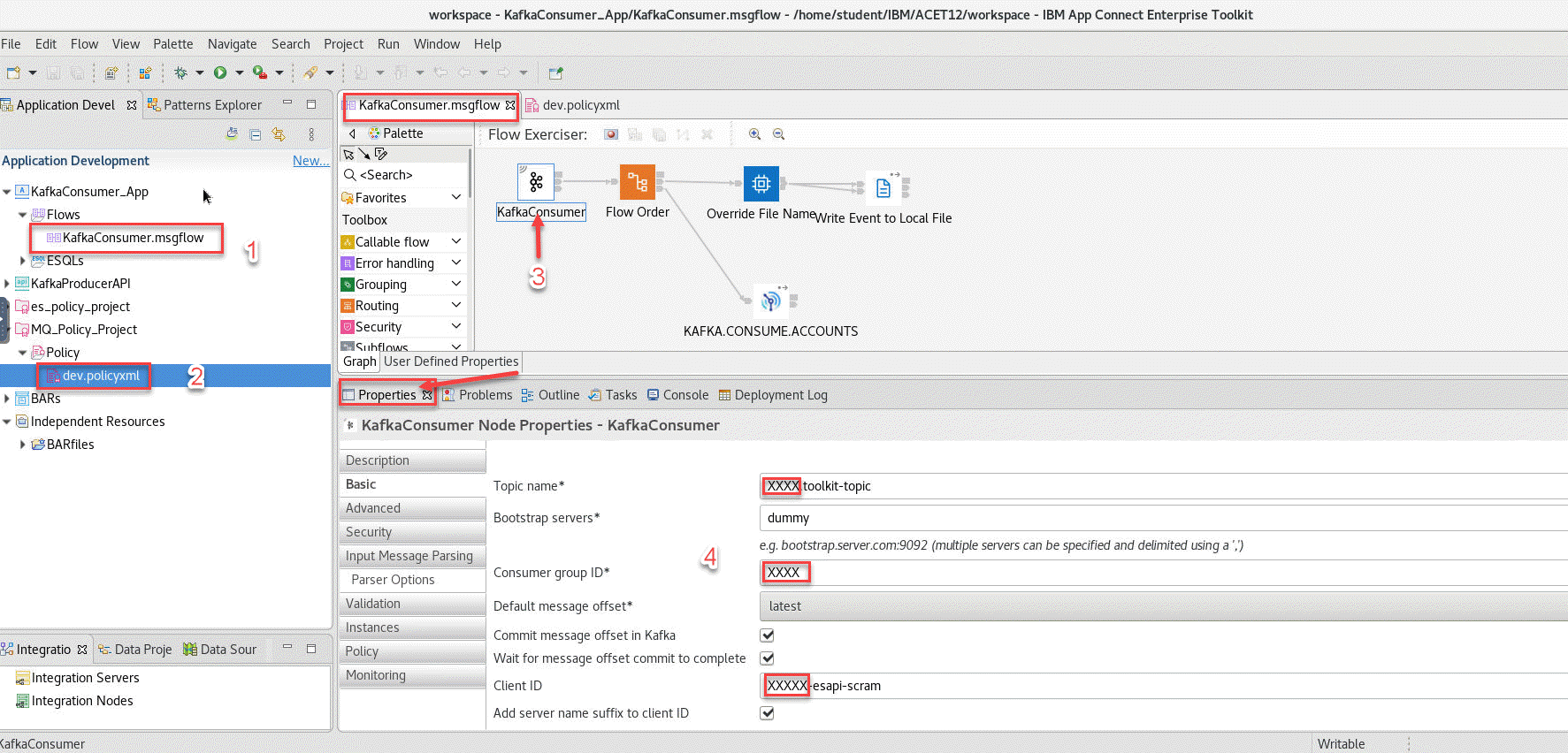

(1) Open the KafkaConsumer_App and go to the Flows folder and double click on the KafkaConsumer.msgflow and you will see the flow open.
-
(2) Open the MQ_Policy_Project -> Policy and double click on the dev_policy.xml and you will see the policy open.
-
(3) In the msgflow click on the KafkaConsumer and make sure the Properites tab is selected below.
-
(4) This is where you will make your updates to this flow. For the Topic name you will replace the XXXX with your user id. In this example it would be student1.
#### Do the same for the Consumer Group ID and the Client ID.
Note Enter CTL-S to save your updates.
9. Now we will update the MQ policy for the Consumer flow.

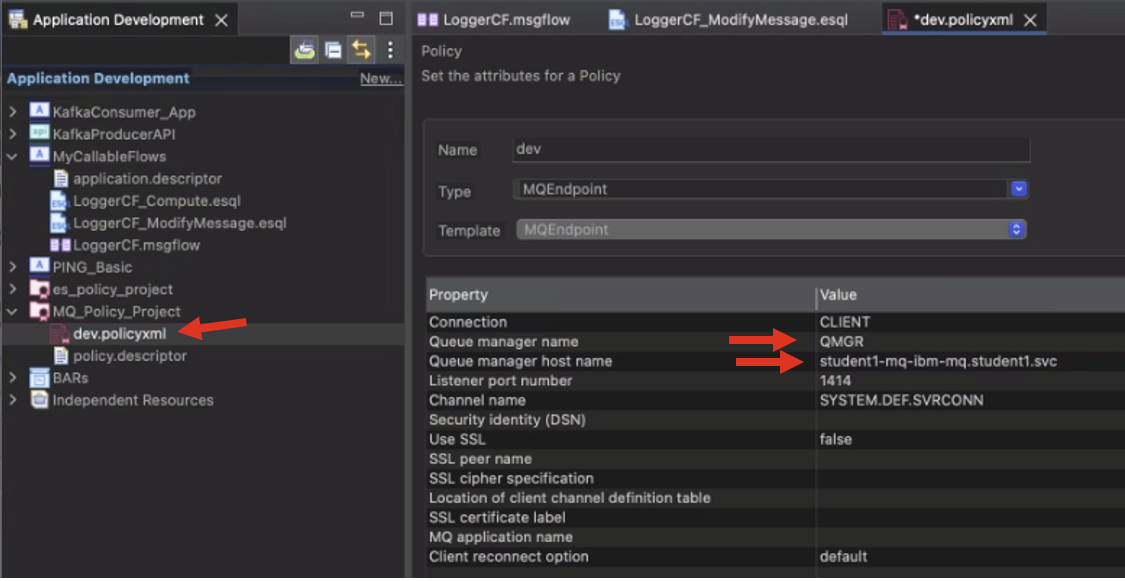

Click on the dev.policyxml and you will see the Policy and the attributes. We have the populated and you only need to change the X in the Queue manager Name and the Host name.
This will be the number is your user.
So for this I would use 1 for student1 user.
If you are say cstudent10 you would change the X to 10.
Note Enter CTL-S to save your updates.
3.4 Create Bar file to deploy our Consumer flow
1. Now we will create the BAR file to deploy our flow. Navigate to the *File menu and select *New and then BAR file

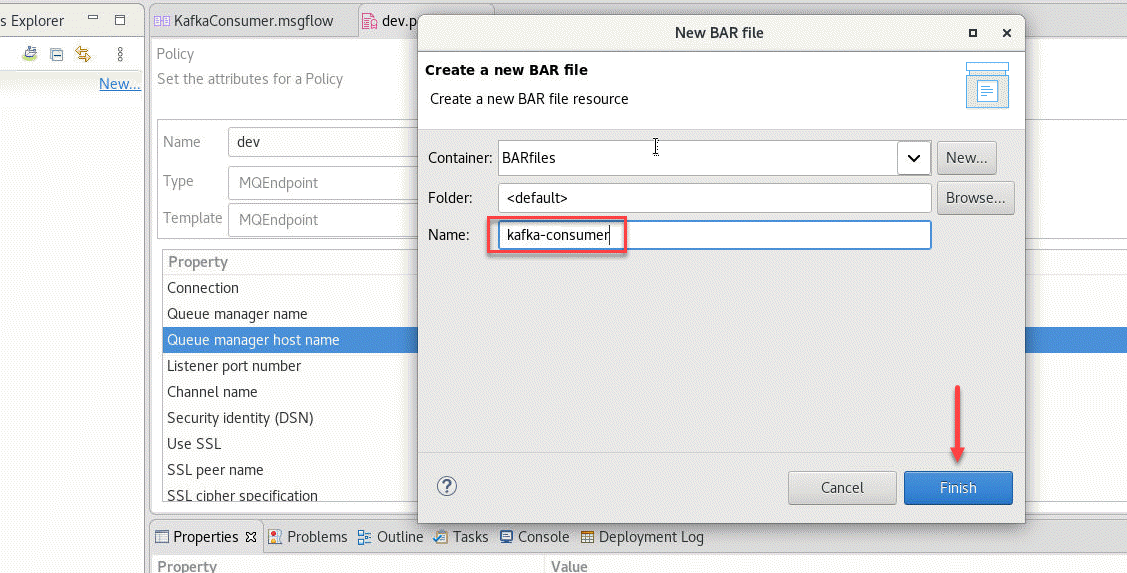

2. In the pop-up window enter the name of the BAR file, i.e. kafka-consumer and click Finish.

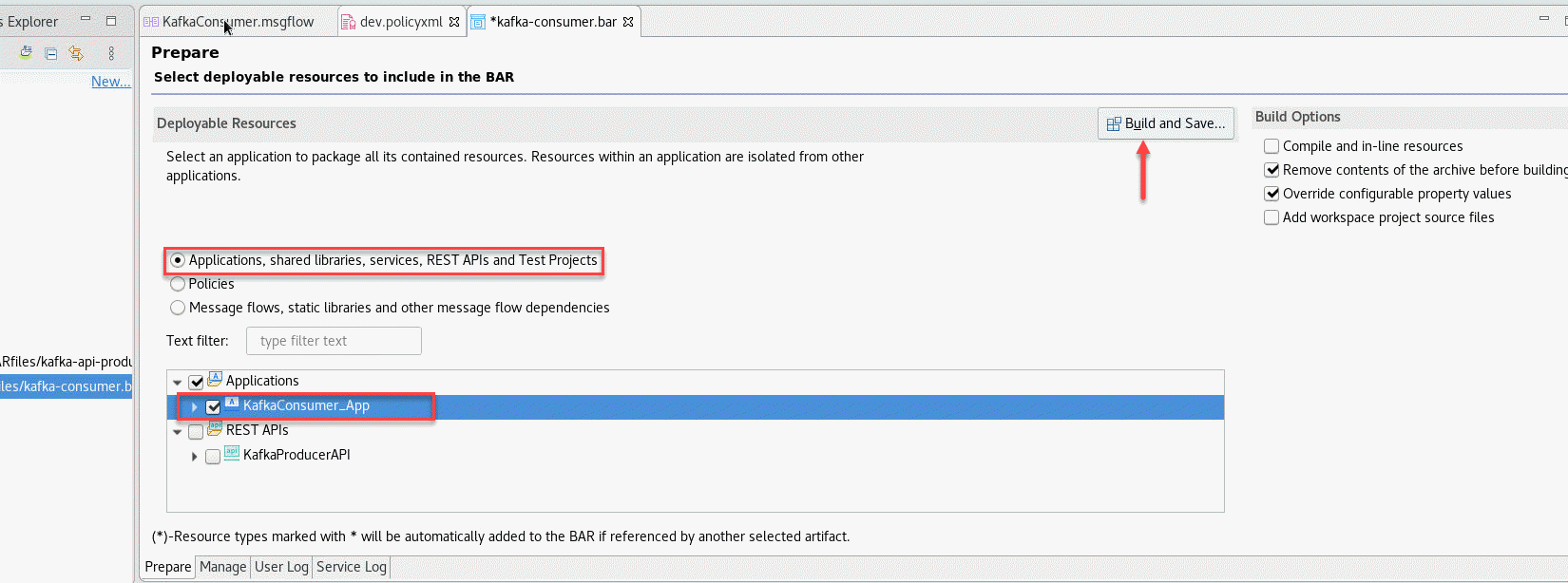

3. The BAR Editor is open. Select Applications, shared libraries, services, REST APIs, and Test Projects to display the right type of resources and then select your application, in this case KafkaConsumer_App. Finally click Build and Save… to create the BAR file.
4. You can dismiss the notification window reporting the result clicking OK.
5. We need to do a final step. We need to create a zip file from the Policy Project we created earlier in this section. First we will open the Files tools
6. Now goto the directory were we saved the Policy. This should be under the ACE Toolkit workspace. You will see the es_policy_project right click on it and select Compress
7. In the Compress Window make sure to select .zip for the format and the Location will be Desktop. Click Create
Summary so far
So far now we have
4. Create Configuration for Deploying to the App Connect Dashboard
Now we will go to the App Connect Dashboard to import our BAR files we created and also create the needed configurations to deploy our solution to a Server.

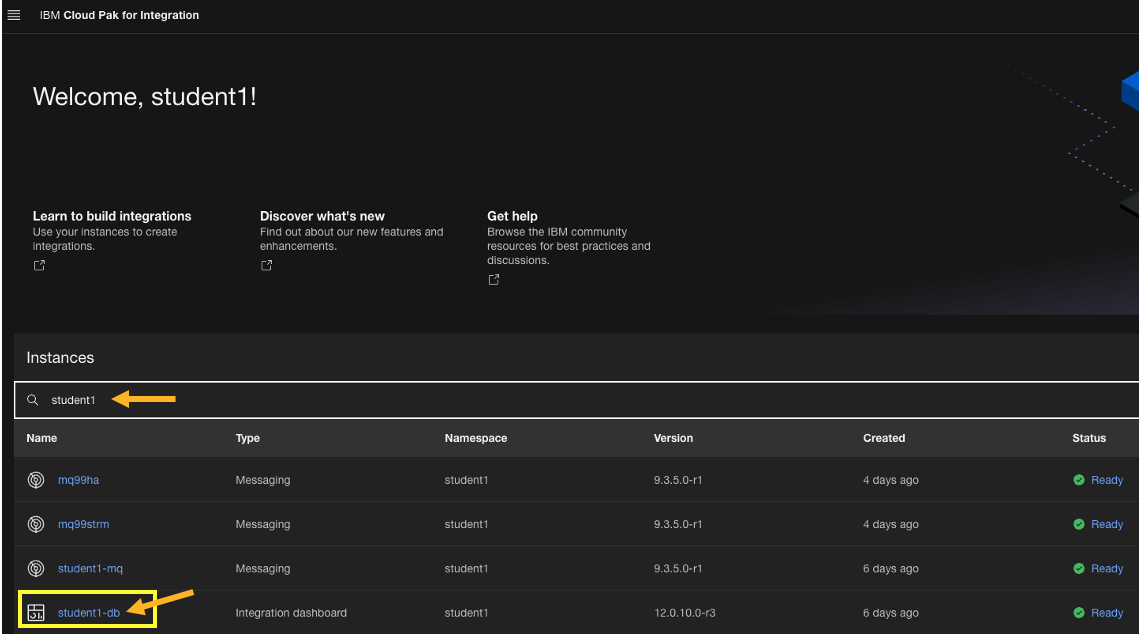

1. You can go to the Cloud Pack home page and Click on Dashboard to get back to the main designer page where you will see your API running.
Or if you already have a tab open from earlier in the lab you can select that.

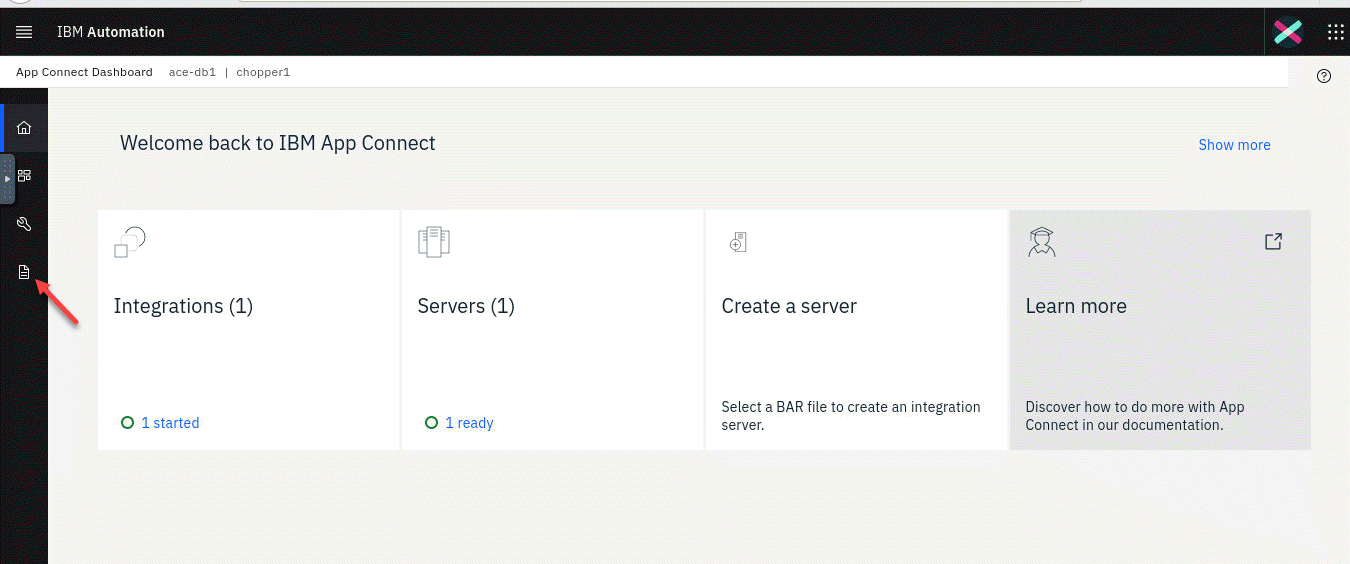

2. You should now be on the App Connect Dashboard homepage.
4.1 Deploy BAR file using ACE Dashboard
1. From the ACE Dashboard home page navigate to the BAR files section clicking the Document icon

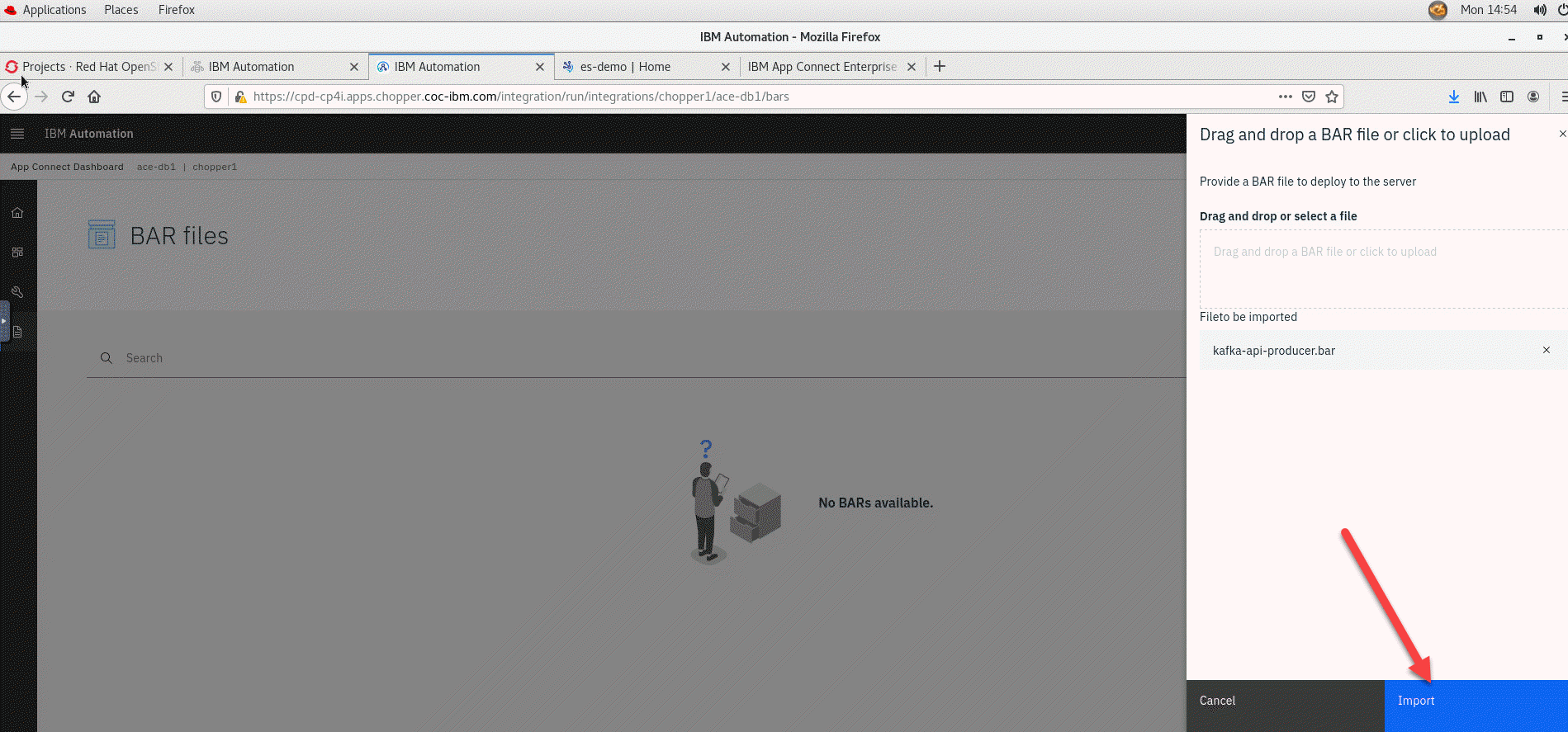

2. On the BAR files section click Import BAR + button.

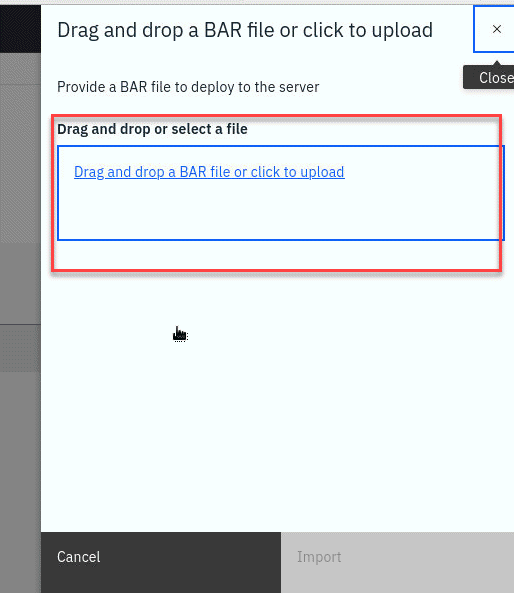

3. In the wizard click the hyperlink Drag and drop a BAR file or click to upload to upload the BAR file we created in the previous section.

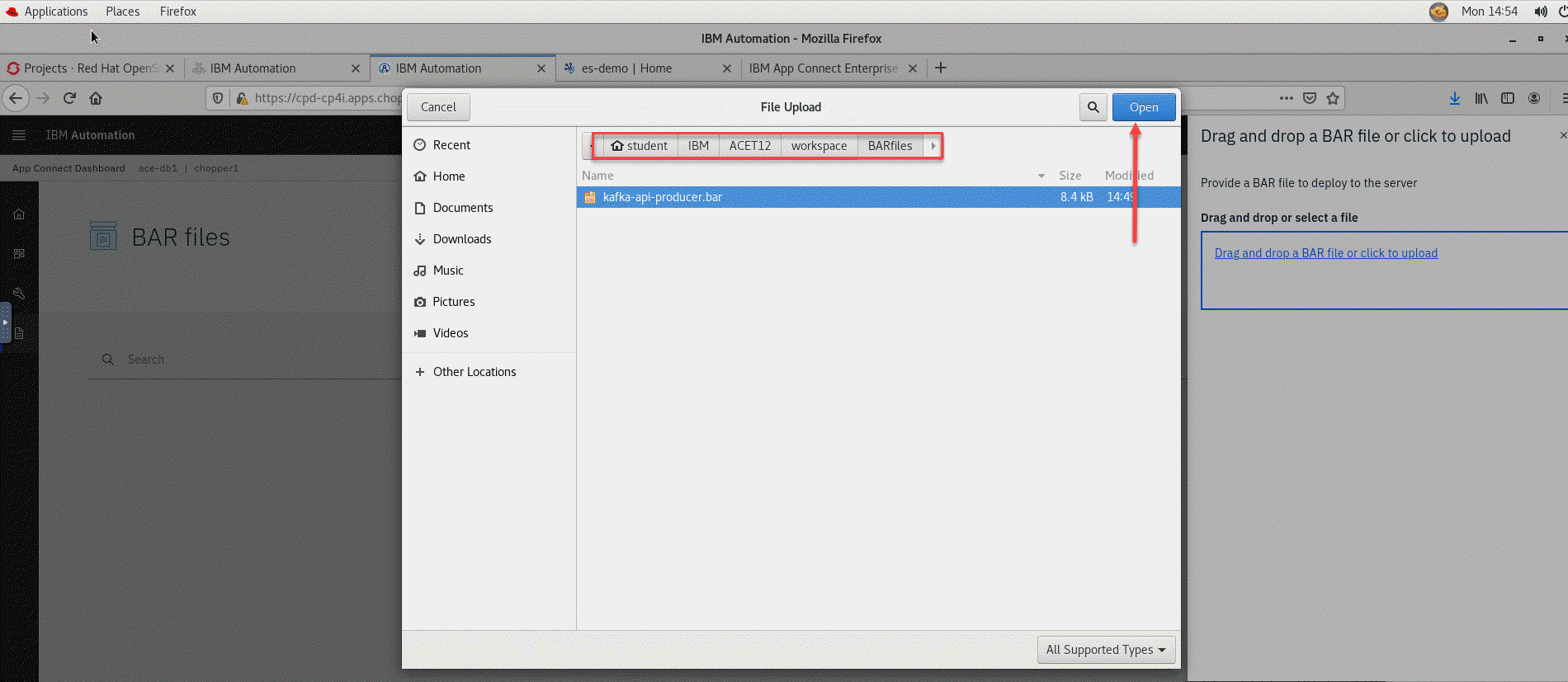

4. Navigate to the folder where the BAR file was created (In the VDI it should be in /home/student/IBM/ACET12/workspace/BARfiles) and select the file and click Open.
5. To complete the process click Import.

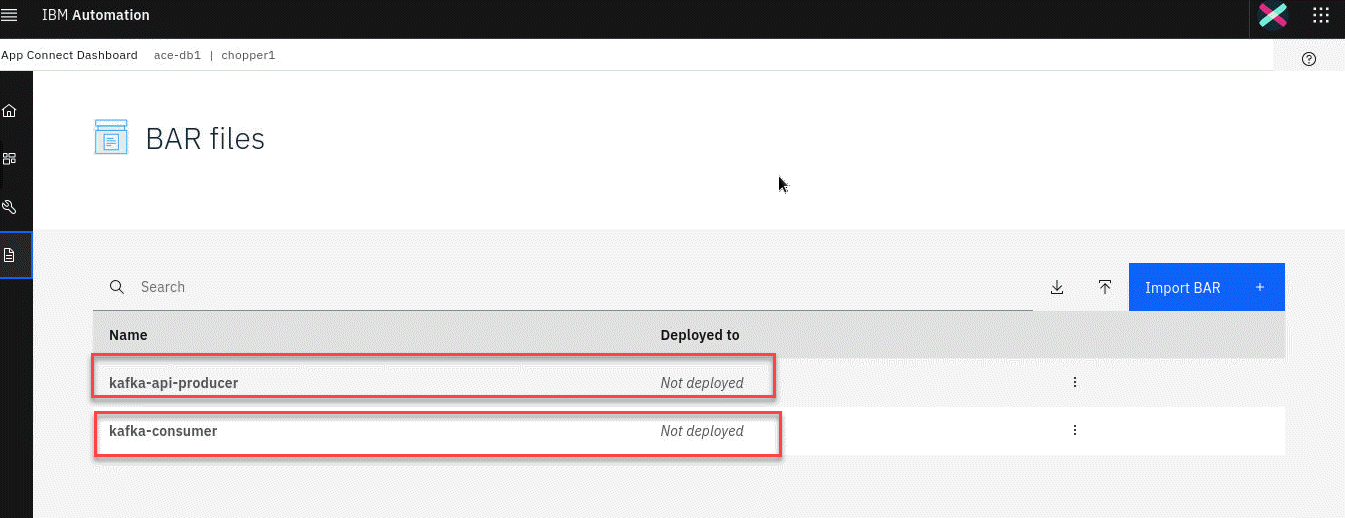

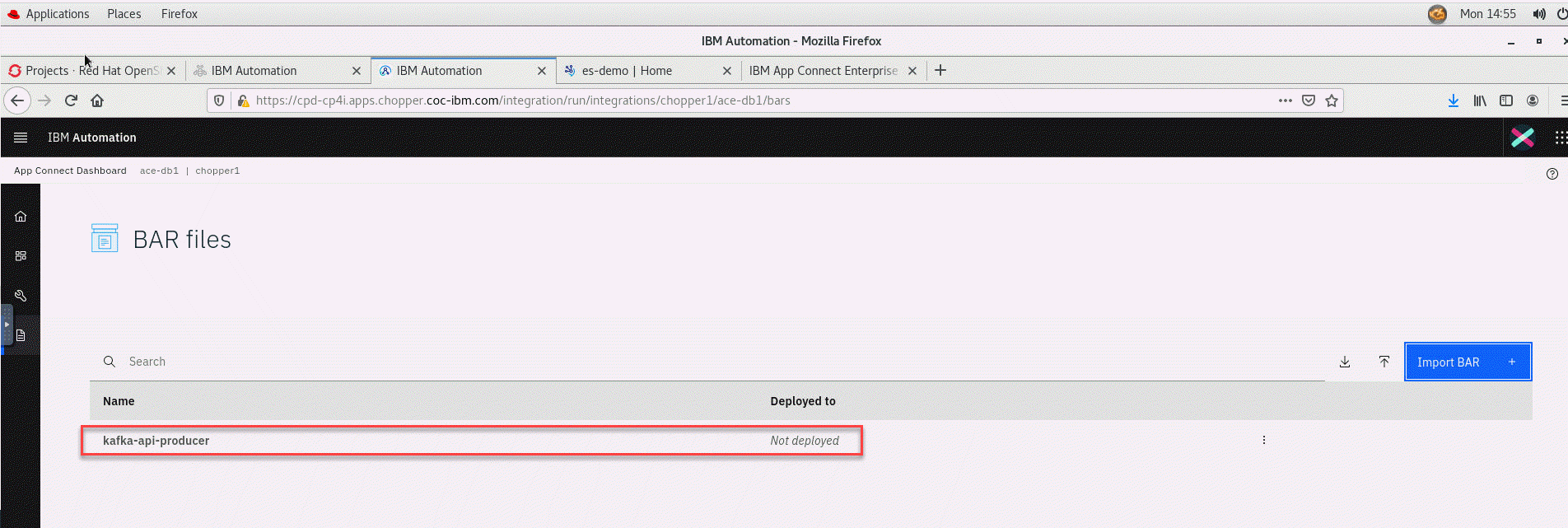

6. After a moment the file will be displayed in the list of BAR files available with the status of Not deployed
7. Now we have uploaded our API Kafka BAR file and need to also upload the Consumer Kafka BAR file. Repeat steps 1-6 to upload the consumer BAR we created. When complete you should have both being displayed in the list of BAR files available with the status of Not deployed
4.2 Create Configurations in ACE Dashboard

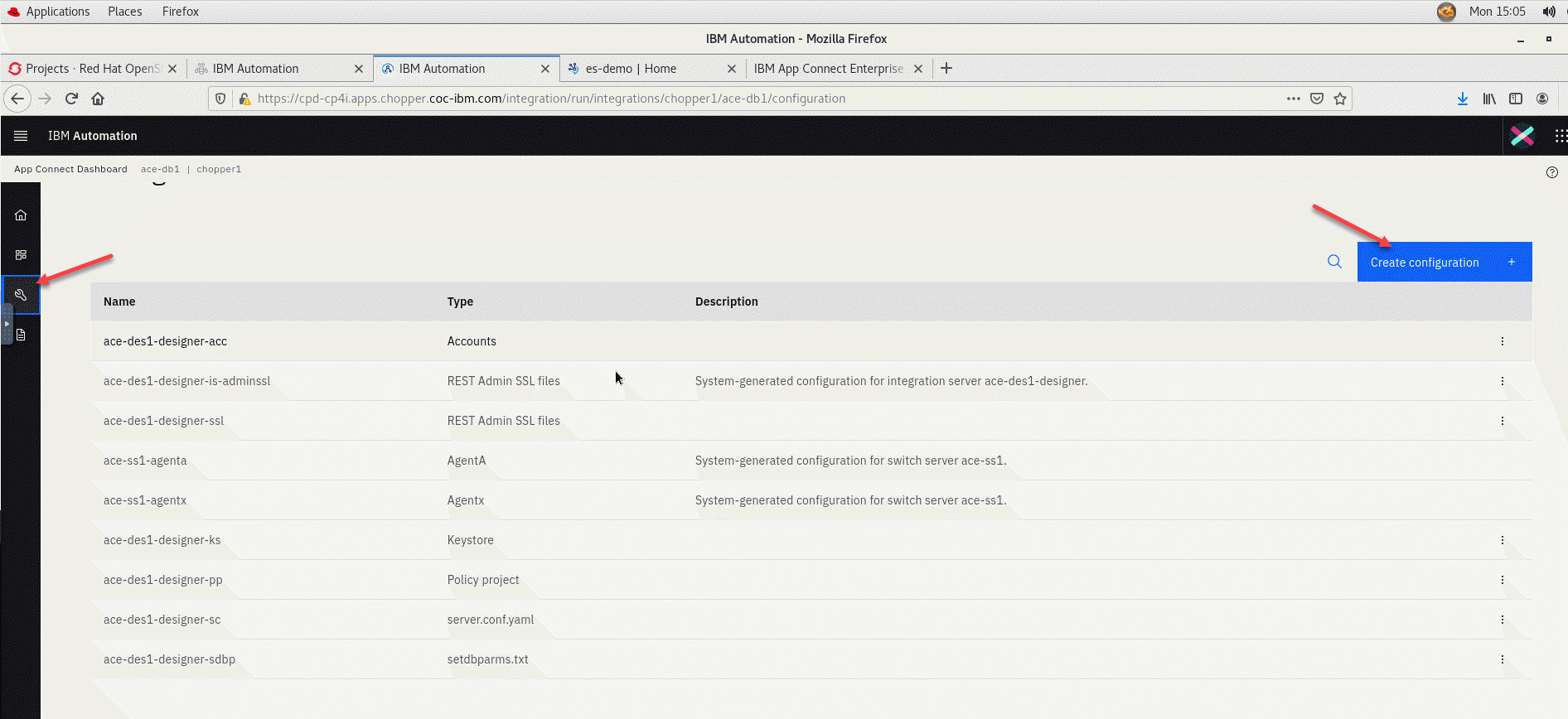

1. We will now go to the configuration section and created the needed configurations needed to deploy are BAR files. Click on the Wrench icon to navigate to the Configuration section. Once the screen is updated click on the Create configuration.

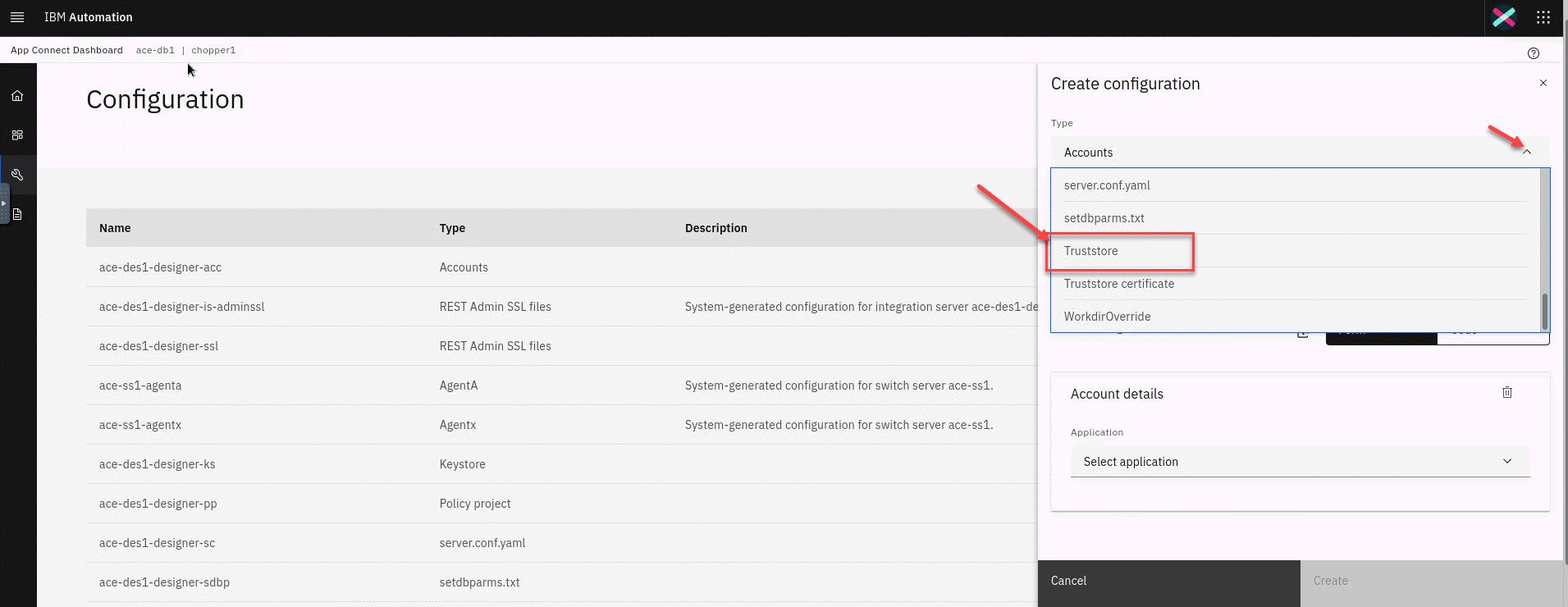

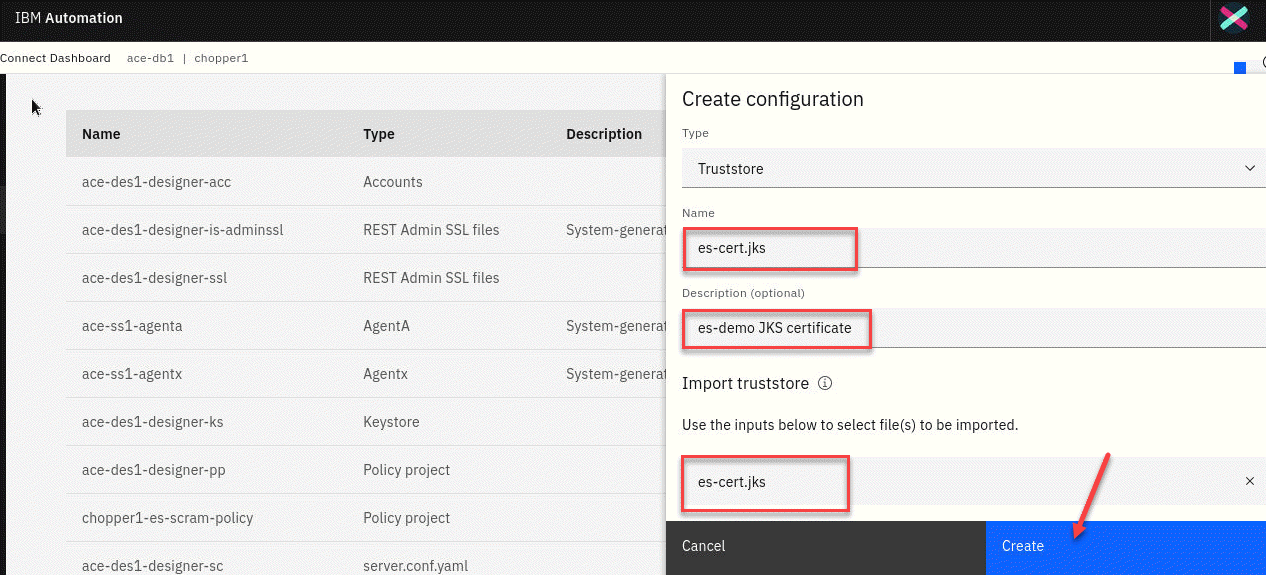

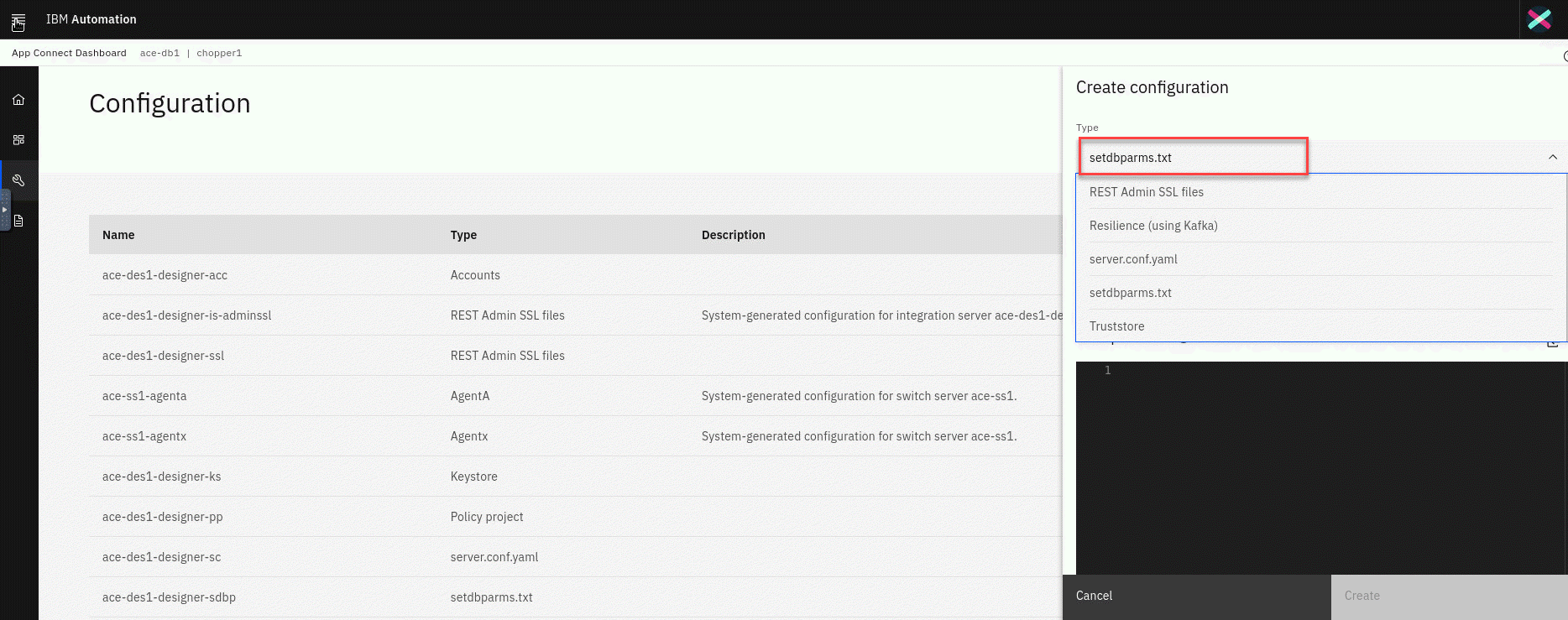

2. In the wizard click on the Type drop down box to select Truststore to upload the Event Streams certificate.

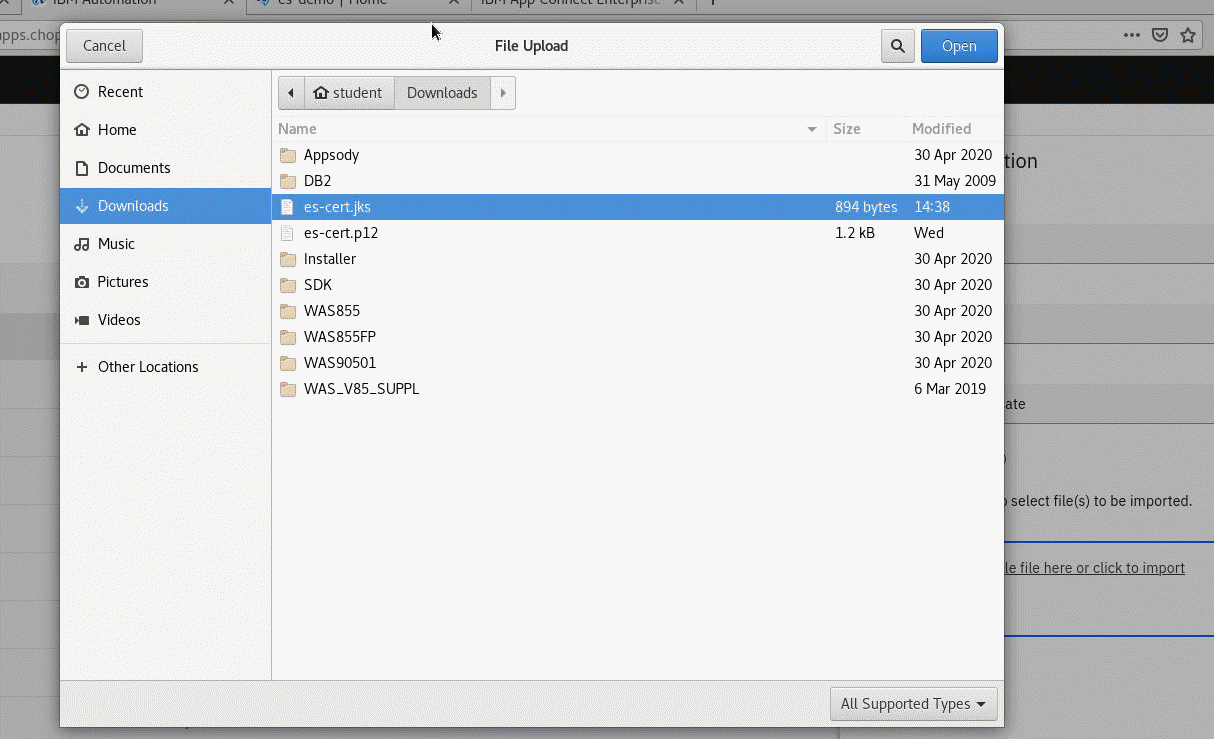

3. In the Import truststore click to import the certificate you download in the previous section and converted to a JKS (es-cert.jks).
4. This will fill in the name and you can then add a brief description if you want to. In my case I used es-demo JKS certificate. Finally click Create to add the TrustStore Configuration.
5. Now we will define the Configuration to store the credentials selecting the setdbparms.txt type from the drop down box.
6. In the next window enter the name of the configuration. In my case I used student1-esdemo-scram-credential. Followed by a brief description i.e. Credential to connect to es-demo using SCRAM. Finally use the following information as a reference to enter the data in the text box.
| Resource Name | User | Password |
|---|---|---|
| truststore::truststorePass | dummy | <Password obtained when downloading the PKCS12 certificate”> |

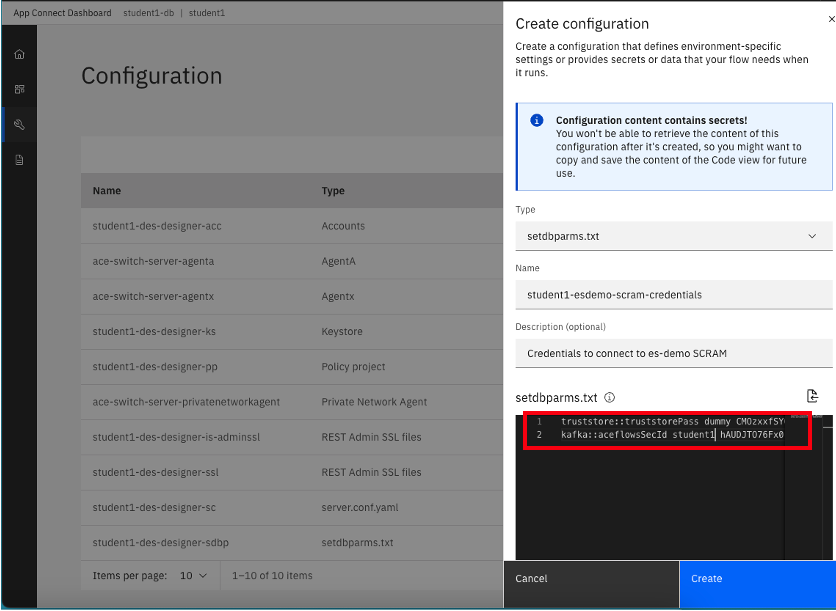

| kafka::aceflowsSecId | <This will be your user id i.e. student1 used to create SCRAM credentials.> | <Password obtained for your user id when you created your SCRAM credentials to connect to Event Streams”> |
Here is an example from when the lab was created:
truststore::truststorePass dummy CMOzxxfSYGMT
kafka::aceflowsSecId student1 hAUDJTO76Fx0
Finally click Create to add the setdbparm.txt Configuration.

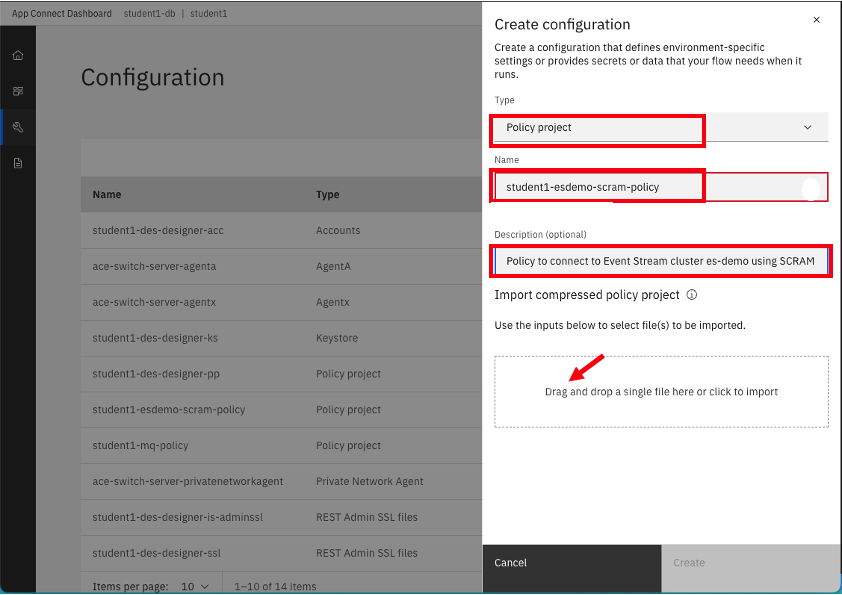

7. Now we will create the Configuration for the Policy selecting the Policy project type from the drop down box. Enter the name of the policy i.e. student1-es-demo-scram-policy , add a brief description if you want to, i.e. Policy to connect to Event Streams instance es-demo using SCRAM and finally click on hyper link Drag and drop a single file here or click to import to import the zip file we created in the previous section.

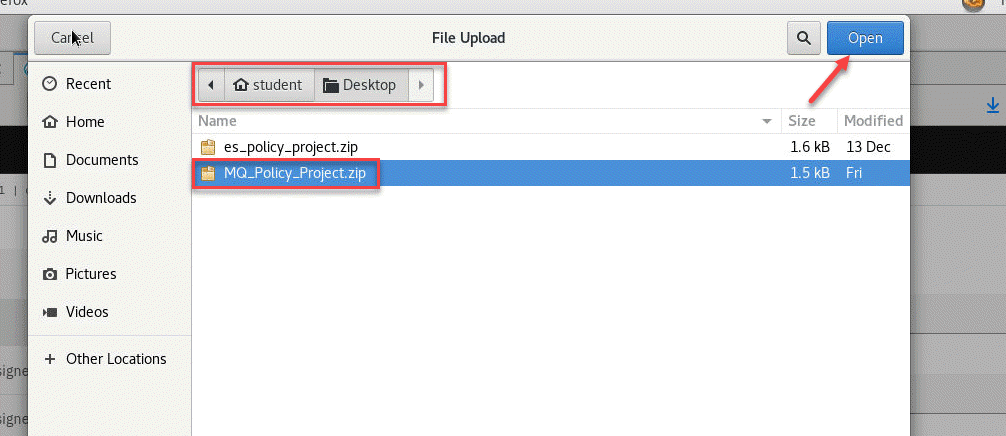

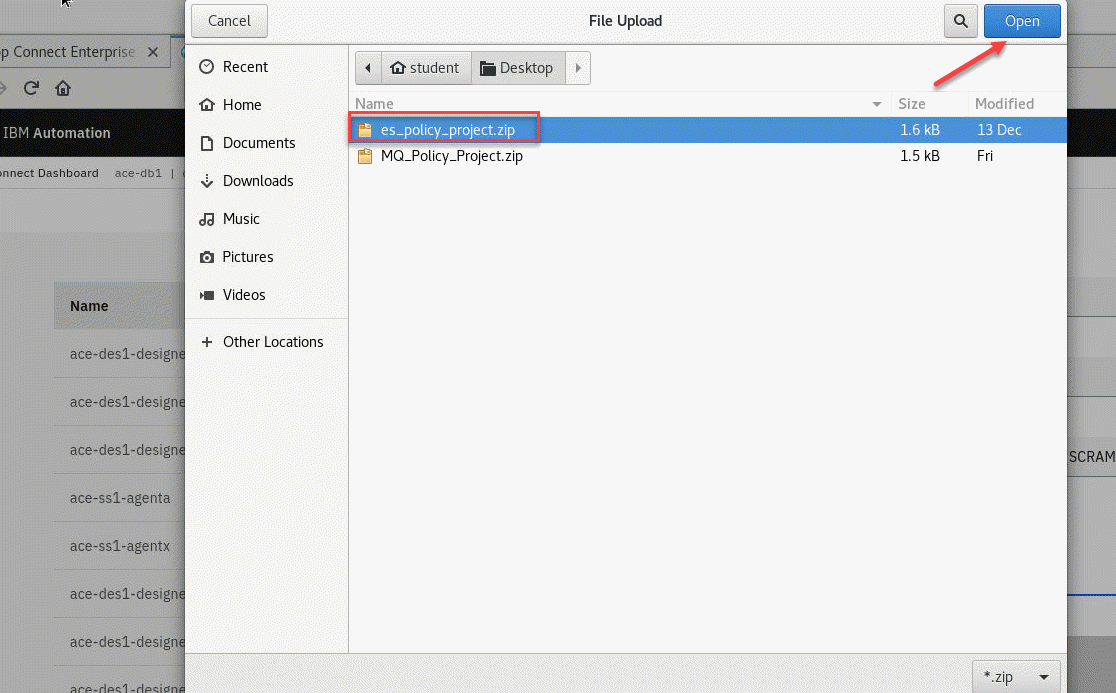

8. Navigate to the folder where you saved the zip file in the previous section, select the file and click Open.
9. Once the policy is imported click Create to add the Policy to the Configuration.
10. Now we will create the Configuration for the Policy selecting the Policy project type from the drop down box. Enter the name of the policy i.e. student1-mq-policy , add a brief description if you want to, i.e. Policy to connect to student1 QMgr and finally click on hyper link Drag and drop a single file here or click to import to import the zip file we created in the previous section.
11. Navigate to the folder where you saved the zip file in the previous section, select the file and click Open.
12. Once the policy is imported click Create to add the Policy to the Configuration.

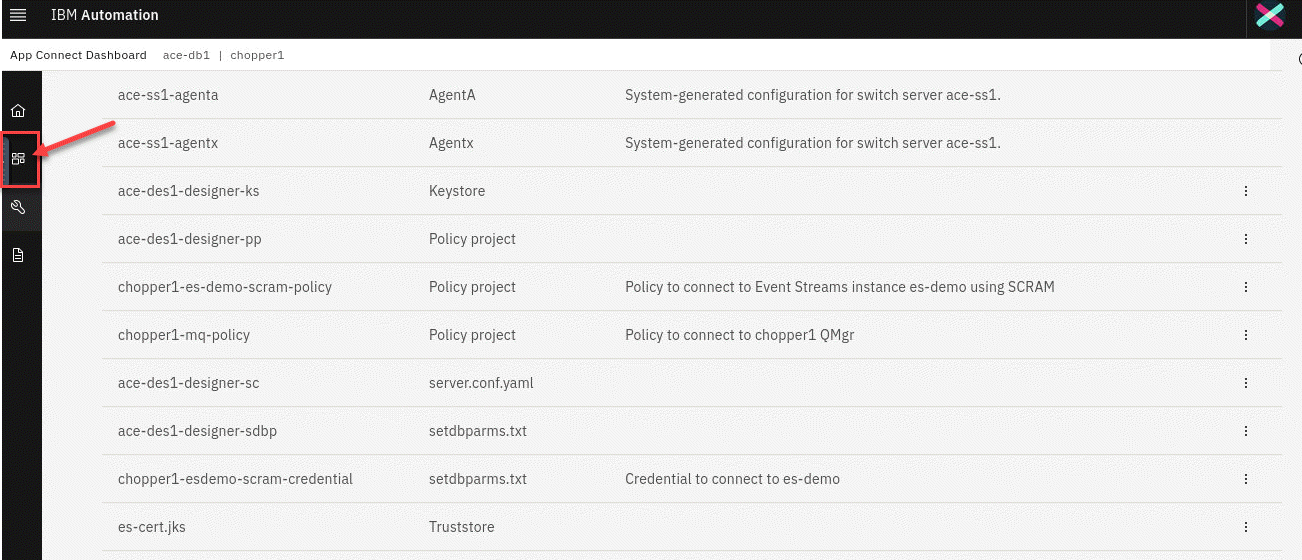

13. Once done you should have 4 new configurations that will be used when deploying the bar files into Integration Servers in the next section.
4.3 Create Server in ACE Dashboard
1. Now navigate to the Dashboard section so we can Create servers.

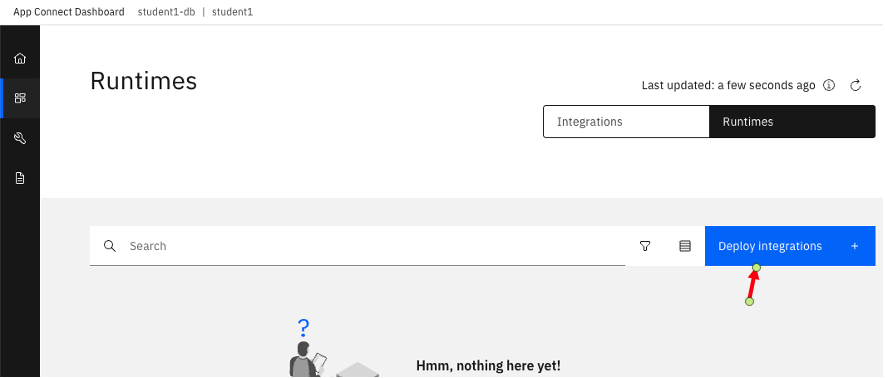

2.From the Dashboard screen click on the Deploy Integrations + button.

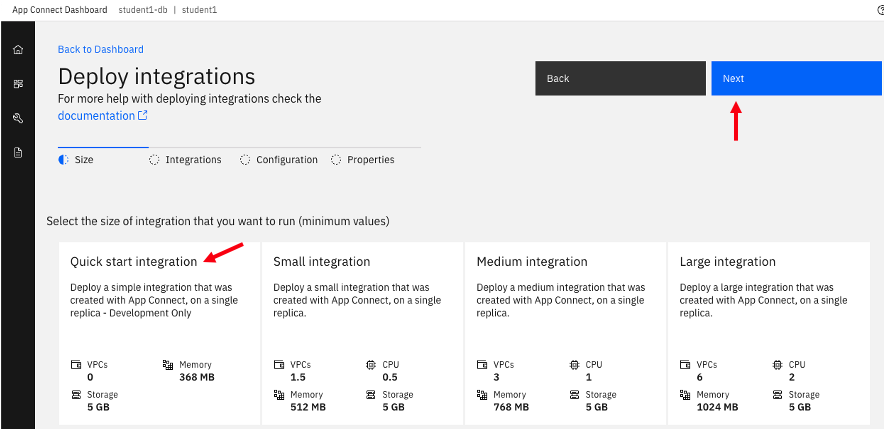

3. This will start the deployment wizard. Select the *Quick start toolkit integration tile and then click the Next button.

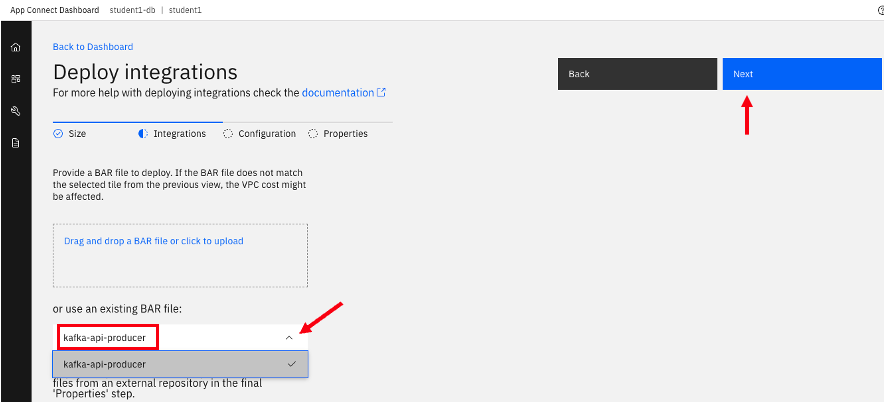

4. In the next window click on the drop down box to select the BAR file kafka-api-producer we previously uploaded and then click Next.

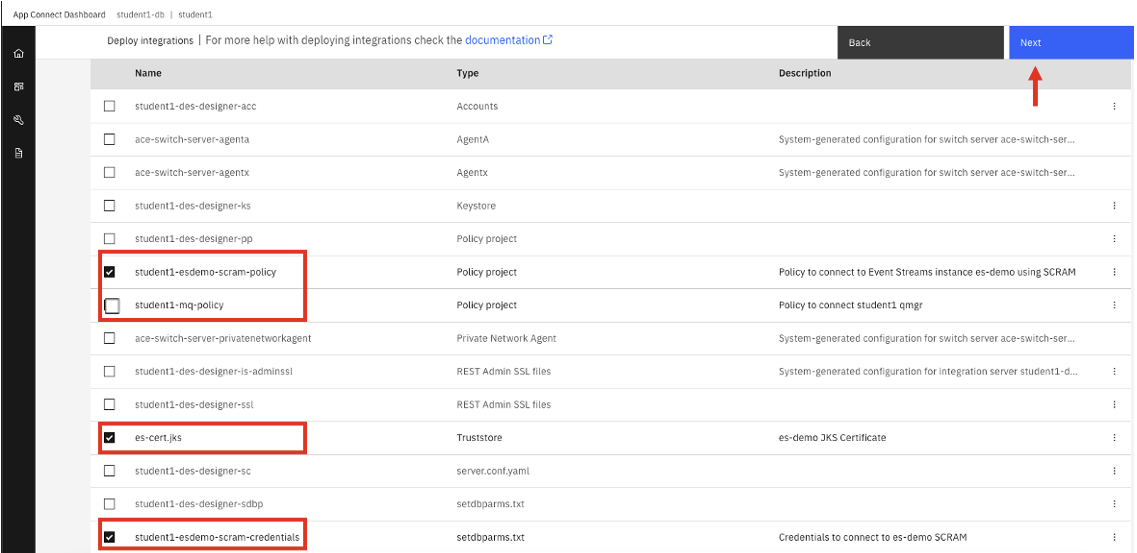

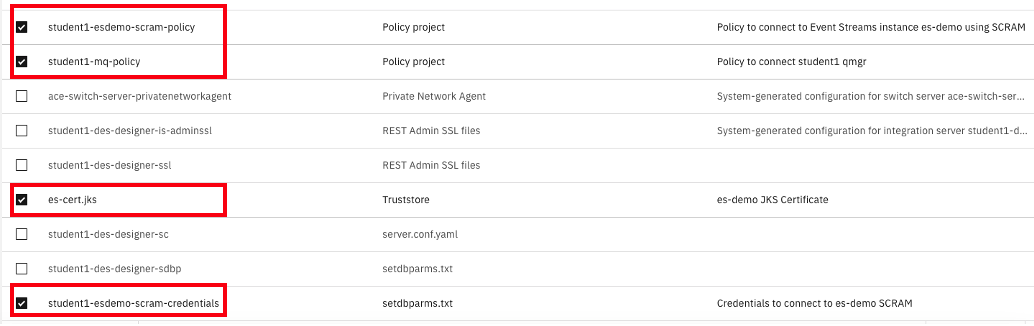

5. In the next window select the 3 configurations we created in the previous section and then click Next.
Note: Do not include the MQ policy. We will use that for the consumer flow

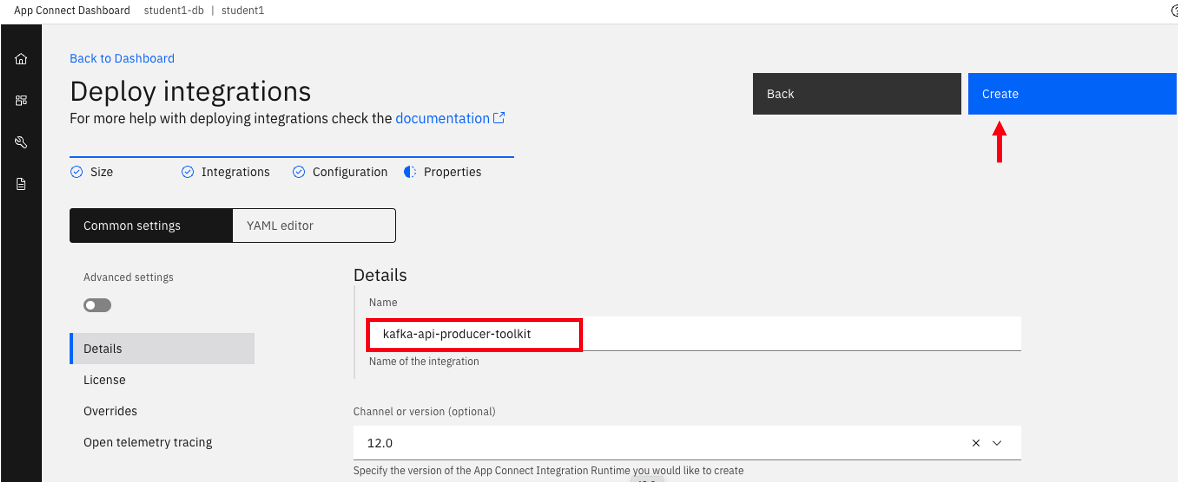

6. In the next page give your deployment a name, i.e kafka-api-producer-toolkit and click Advance settings.
7. Now scroll down

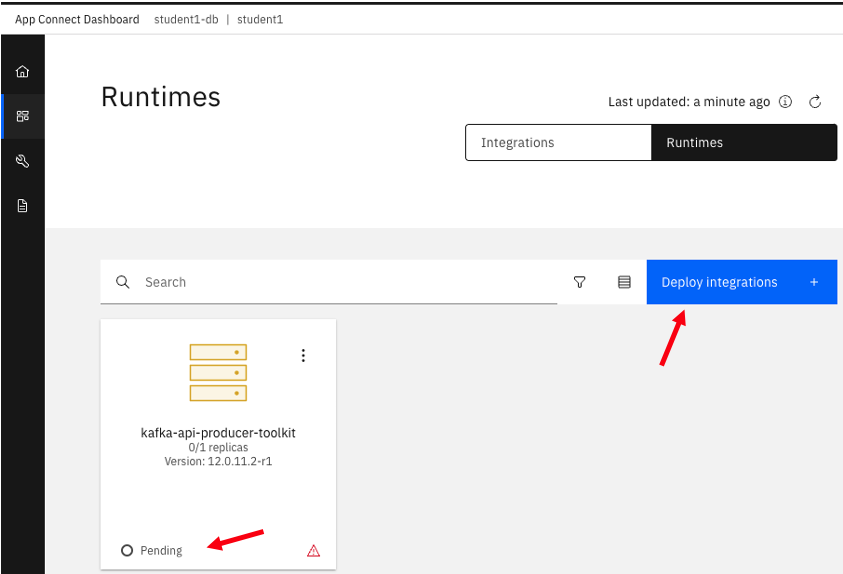

8. After a moment you will be taken back to the Dashboard page where you will see a new tile with your Integration Server deployment name in Pending state, similar to the picture shown below. We will now create Server to deploy the Consumer BAR file. Click Create Server
9. This will start the deployment wizard. Select the *Quick start toolkit integration tile and then click the Next button.
10. In the next window click on the drop down box to select the BAR file kafka-consumer we previously uploaded and then click Next.
11. In the next window select the 4 configurations we created in the previous section and then click Next.
Note: We will include the MQ policy for this flow since we are putting the messages to MQ Queue.

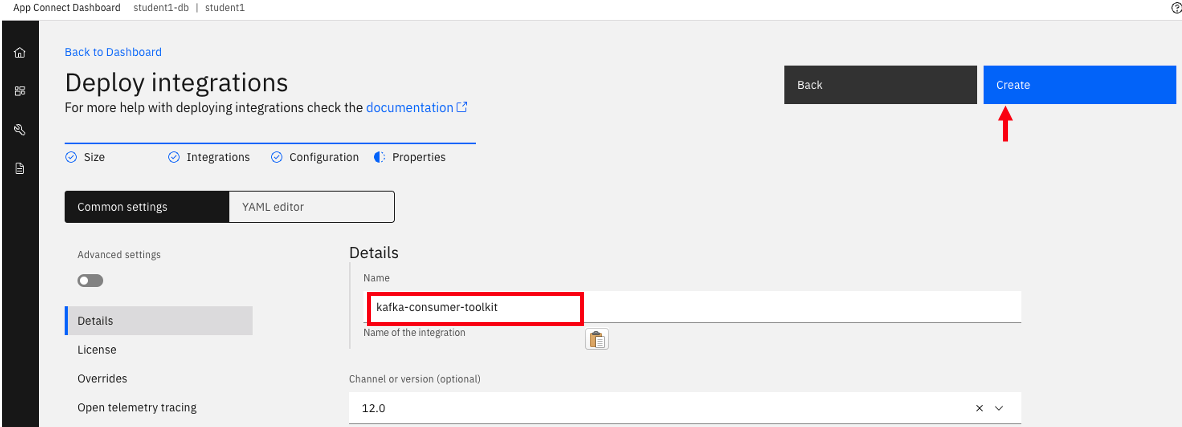

12. In the next page give your deployment a name, i.e kafka-consumer-toolkit and click Advance settings.
13. Now scroll down

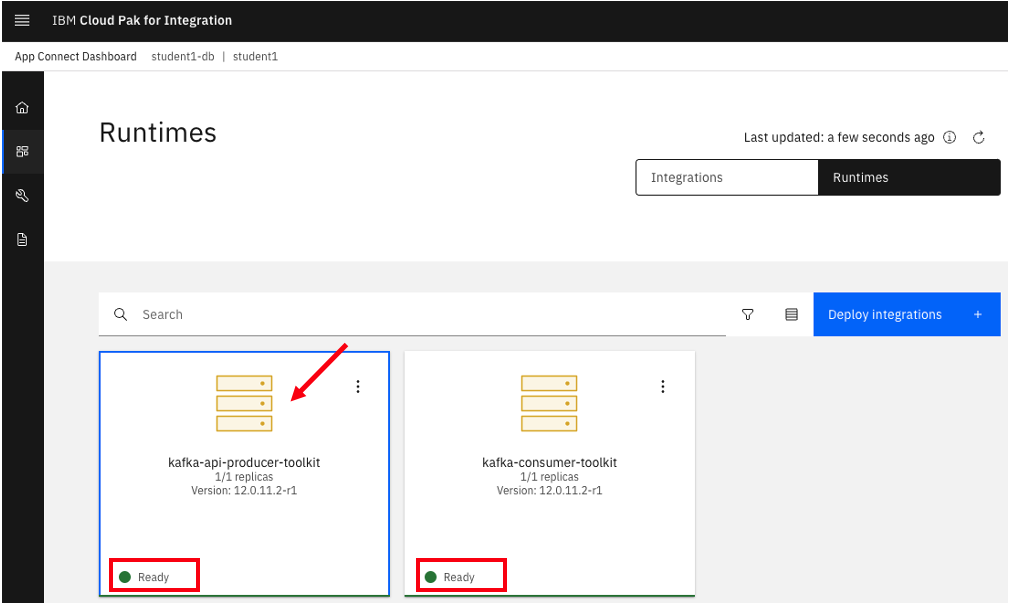

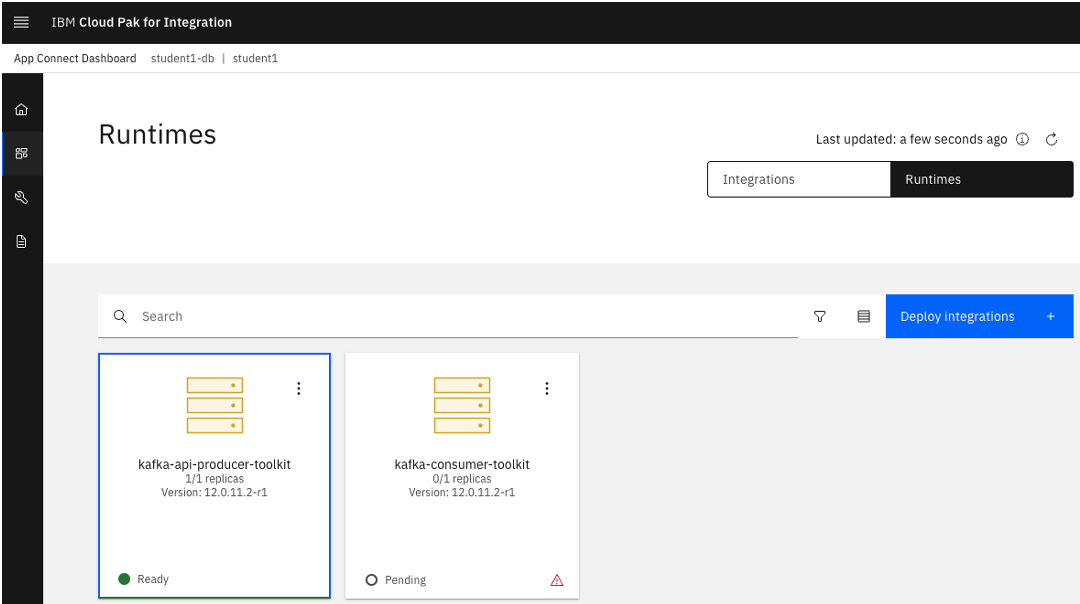

14. You will be returned to the The App Connect Dashboard as it is deploying the Integration Server in the background creating the corresponding pod in the specified namespace of the Red Hat OpenShift Container Platform. This process can take more than a minute depending on your environment. Click the refresh button in your browser until you see the tile corresponding to your deployment in Ready state as shown below:
5 Test that everything is working as expected.
We will now test are flows but using the Kafka API to generate a Kafka message that our consumer flow will get and then write to a log file and put the message onto a MQ queue.
1. From the App Connect Dashboard screen make sure both your Integrations Servers are running and then click on the kafka api tile.

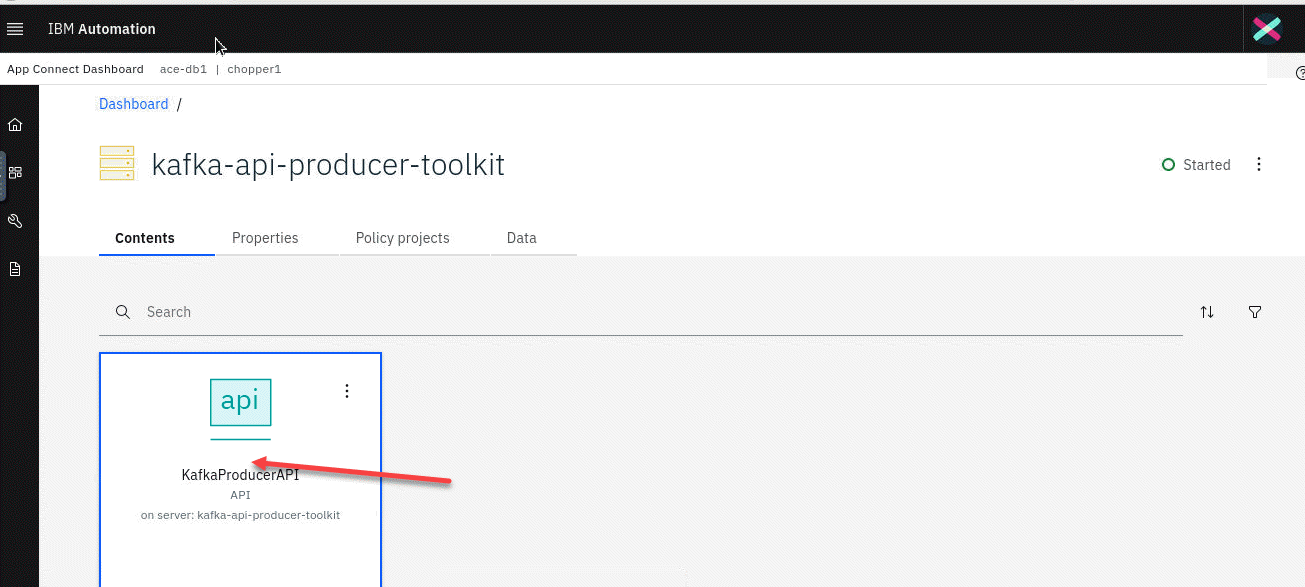

2. You will see the content which includes the API. Click on the API to open it.
3. In the KafkaProducerAPI click on the POST operation and select the the Try it.

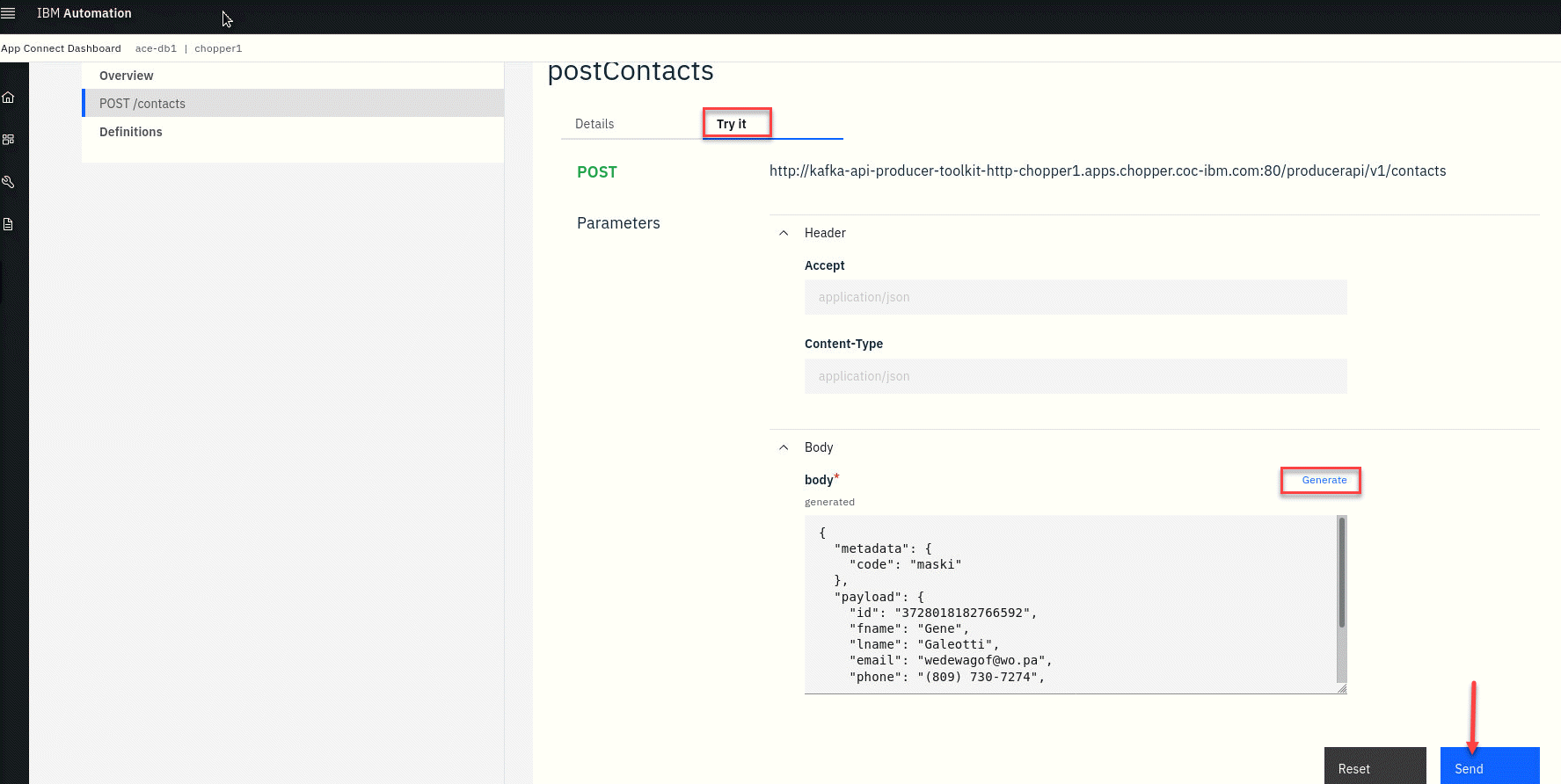

4. Scroll down to the Body of the API and click on the Genrate to populate the body of the API. Then click Send
Note you can change the generated content to something more meaningful.

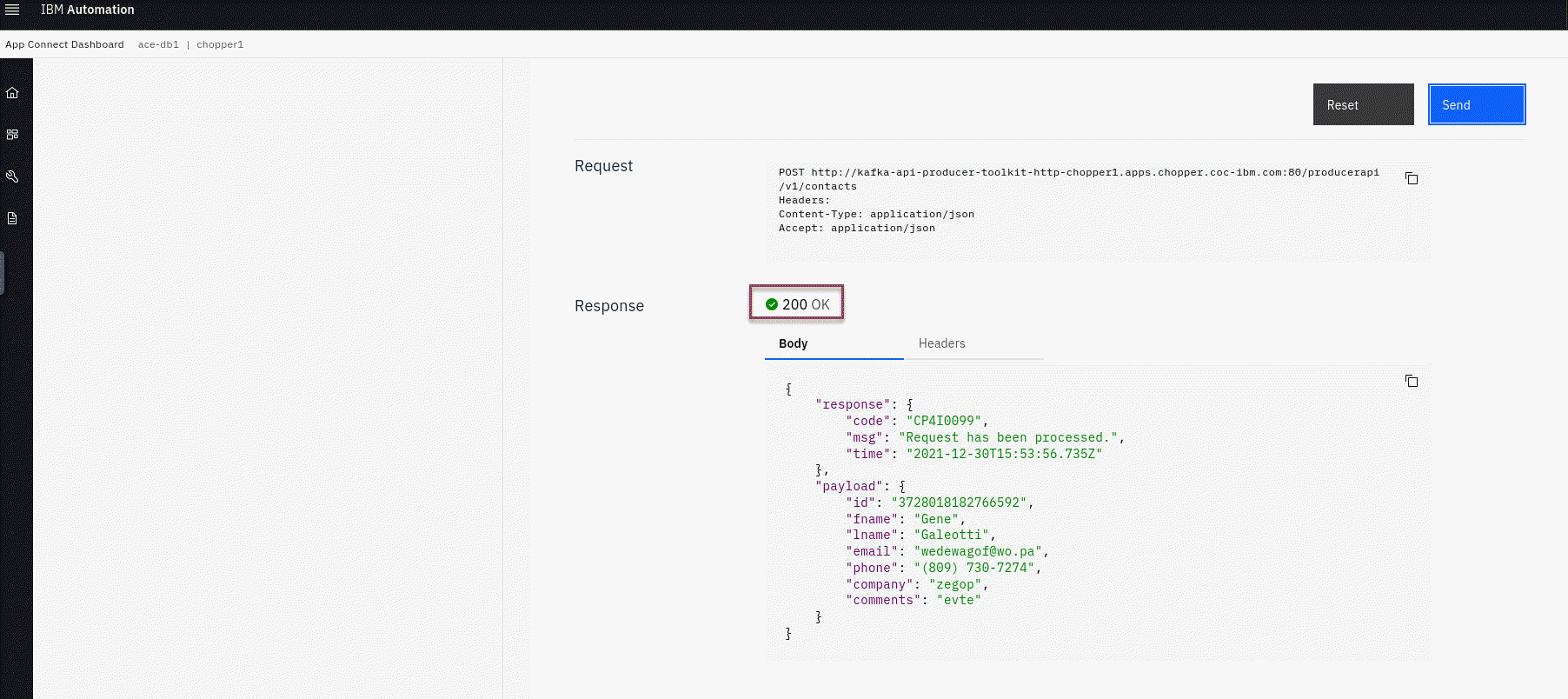

5. You will then see the response from the API and should include a 200 OK

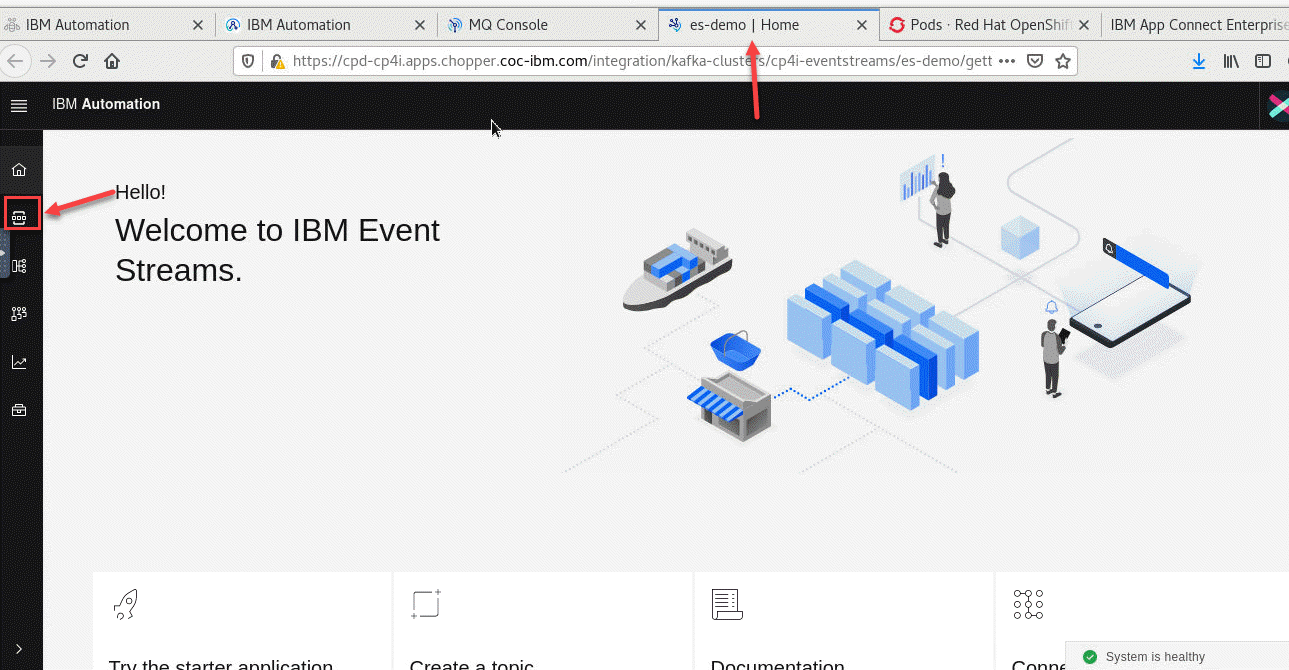

6. Now go to the Event Stream Home page and select the Topics on the left hand menu.
7. You will then see several topics from others since this is a shared Kafka cluster. Select the topic you created for this lab.

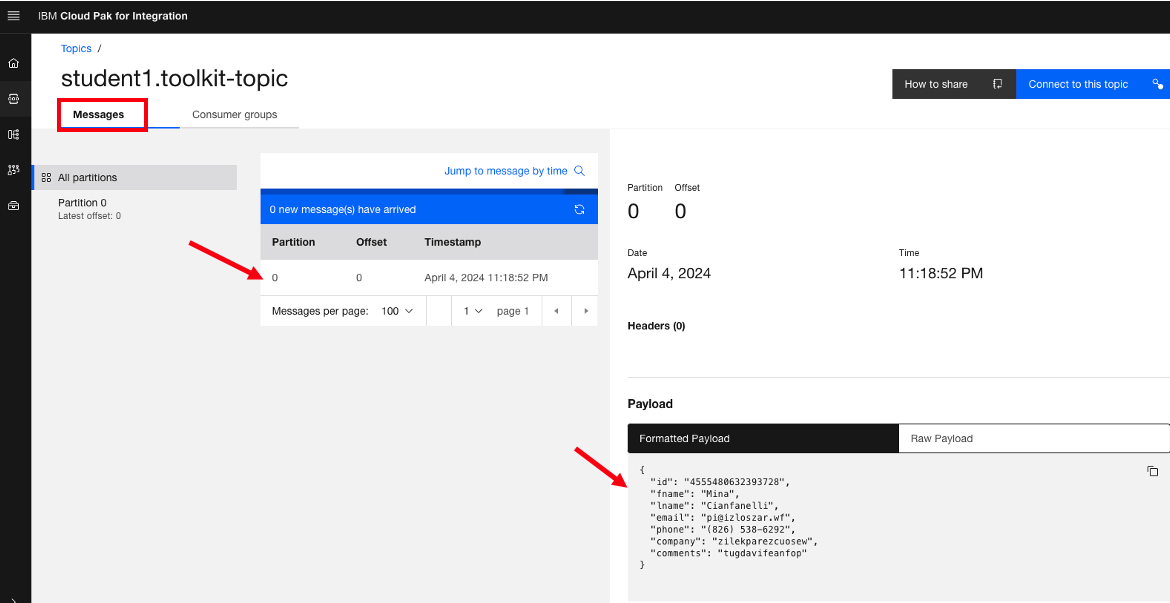

8. Click on Messages and you will see a list of all messages published to this topic. Click on the current message and you will see the content to the right.
9. Now let’s go to the MQ Console and select the Manager Tile for your QMgr.

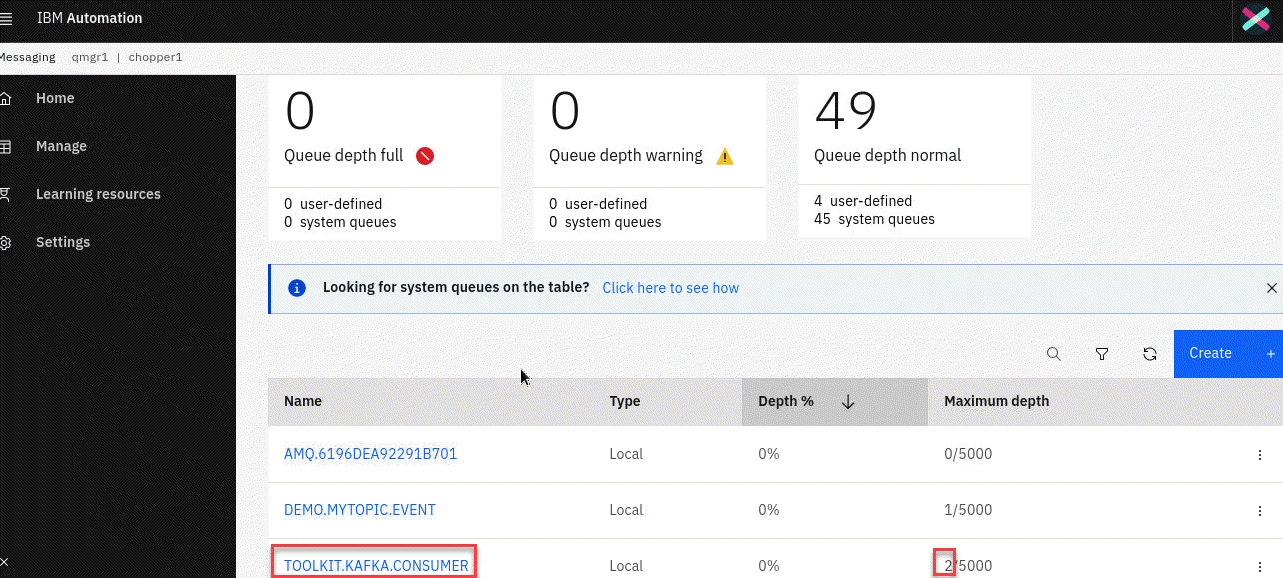

10. You will see a list of Queues that you have for your QMgr. You should see the Queue you created for this lab TOOLKIT.KAFKA.CONSUMER Every time you run the API Kafka Producers you will see the message depth increase.

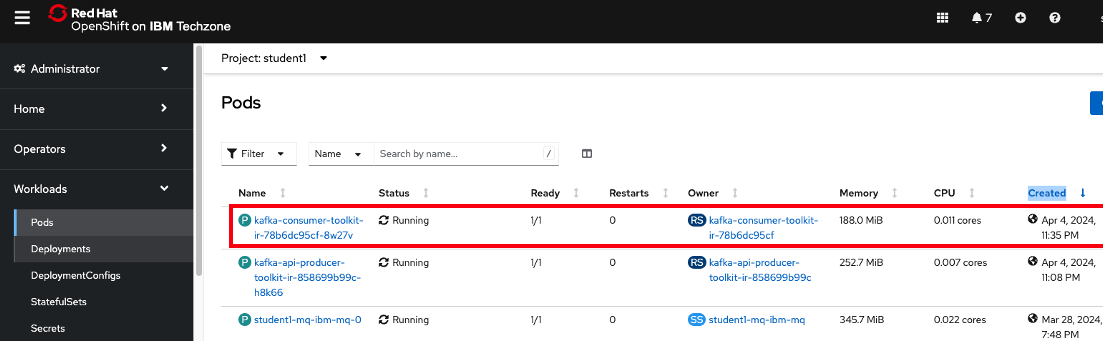

11. Now let’s go to the Red Hat Openshift Console and make sure you sign in with your same userid and password. Select Workloads and select Pods to see all your running pods in your Project (Namespace). In this example it is student1. Find the kafka consumer pod and select that.
12. This is the Pod running your consumer container. Select the Terminal which will open a terminal into your container.
Enter the following commands to view the file your flow creates.
cd /tmp
ls -ls kafka-example*
cat kafka-example*
Summary
We have now completed the lab which shows how we can produce a message to be published to the kafka broker and then a consumer that will consume the messages for that topic and put to an MQ queue and write to a local file.
